COM Express Type 6 Carrier Board
| CPU Module Platform |
| COM Express |
COM ExpressTM Type 6 Rev. 2.1 compliant, basic size or compact size |
| CPU |
x86 CPU |
| Display |
| HDMI |
1x HDMI (Share with VGA) |
| DP |
1x Display Port |
| VGA |
1x internal wafer (Share with HDMI) |
| LVDS |
24-bit dual channel |
| Storage |
| SATA |
1x mSATA socket, 1x SATA (7-pin) |
| USIM |
2x USIM socket |

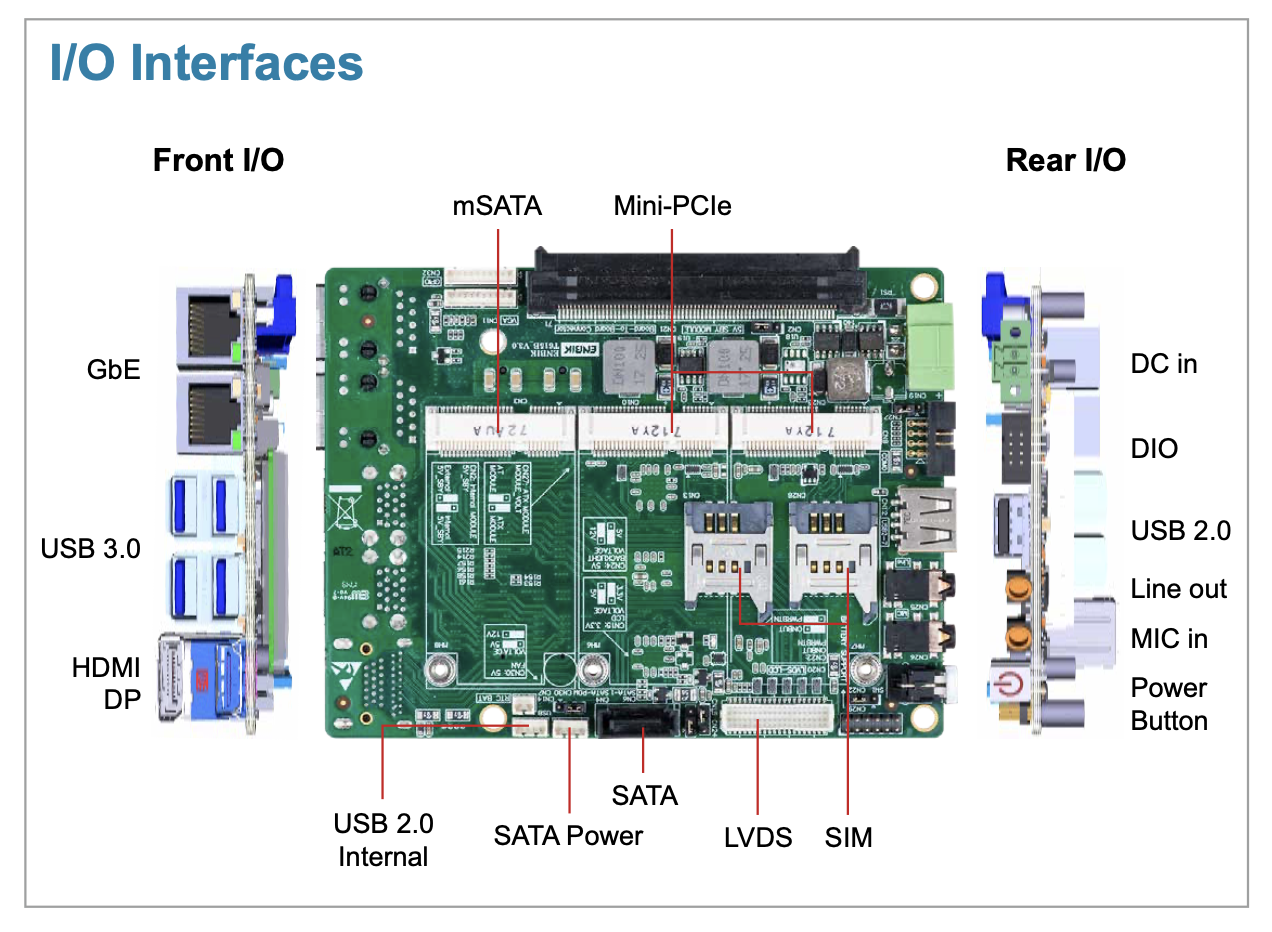

| I/O Interface |
| Ethernet |
2x EJ45 GbE |
| USB |
4x USB 3.0/2.0, 1x USB 2.0, 1x USB 2.0 internal |
| Audio |
1x Line-out/MIC-in |
| UART (Serial Port) |
2x RS-232 (TxD, RxD signal only) |
| Digital I/O |
4-bit GPI, 4-bit GPO |
| Expansion |
| Mini-PCle |
2x Full-Length Mini-PCIe socket (PCIe + USB + SIM) |
| Others |
| Watchdog Timer |
Multistage |
| Smart Battery Management |
ACPI 5.0 compliant |
| Miscellaneous |
5x PCIe x1 (*), 2x SATA (*), 1x DDI(*), LPC, SMB, I2C, Power button, reset button, HDD LED (*Depends on CPU module) |
| Operating System |
| Windows/Linux |
Depends on CPU module |
| Power |
| DC Input Voltage |
9V~32Vdc |
| OS Support |
| Windows/Linux |
Depends on CPU module |
| Mechanical |

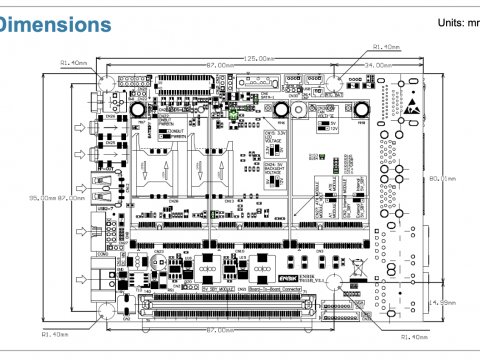

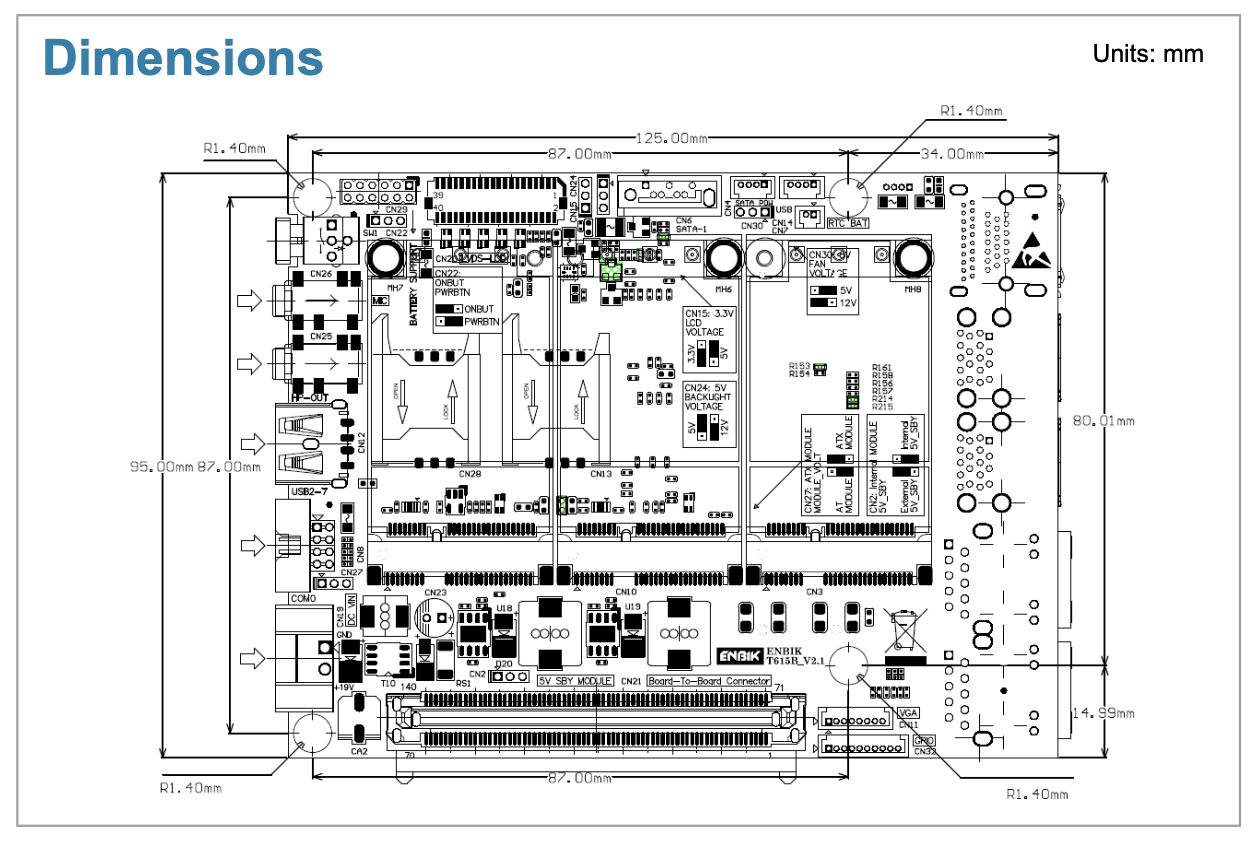

| Dimensions |
125 x 95mm |
| Environment |
| Operation Temperature |
-20°C ~ 70°C |
| Storage Temperature |
-45°C ~ 85°C |
| Operation Humidity |
10% to 90%, non-condensing |
| Storage Humidity |
5% to 95%, non-condensing |
| Certification |
| Safety Certifications |
CE/FCC Class A |
I/O Comparison Chart
|
| Model Name |
DP |
DDI/VGA |
LVDS |
GbE(RJ45) |
DIO |
USB 3.0 |
USB 2.0 |
RS-232 |
Mini-PCle |
mSATA |
| T615 |
1 |
1 |
24-bit Dual channel |
2 |
4-bit DI & 4-bit DO |
4 |
2 |
2 |
2 |
1 |
| T615V |
Ordering Information:
| Model Name |
|
Article Number (A/N) |

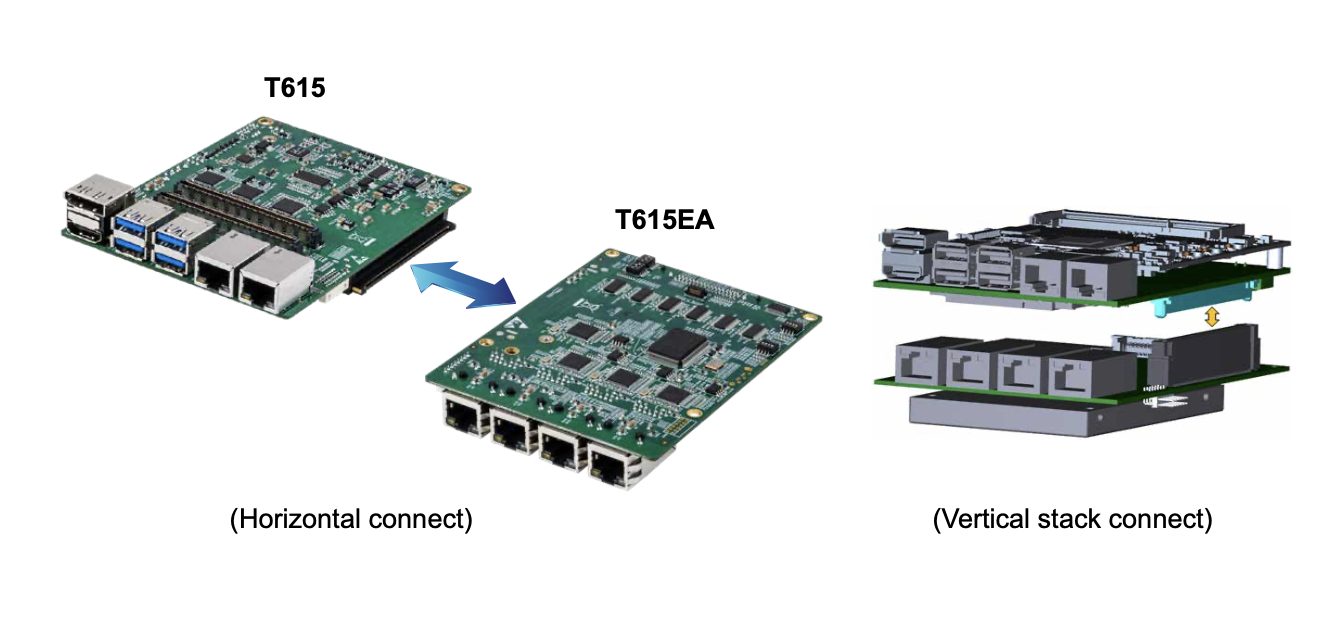

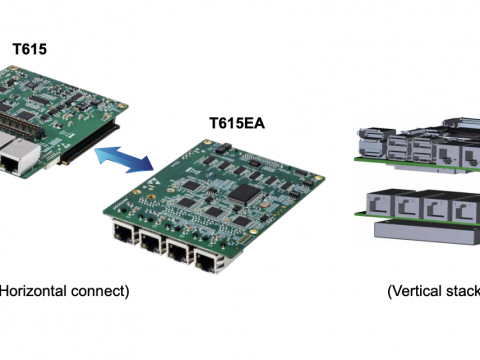

| T615 |
COMe Type 6 Carrier Board (Horizontal Connector), 1x DDI/VGA, 1x DP, 1x LVDS, 2x RJ45 GbE, 4x USB 3.0, 2x USB 2.0, 2x RS-232, 4-bit DI & 4-bit DO |
7421-615100 |
| T615V |
COMe Type 6 Carrier Board (Vertical stack Connector), 1x DDI/VGA, 1x DP, 1x LVDS, 2x RJ45 GbE, 4x USB 3.0, 2x USB 2.0, 2x RS-232, 4-bit DI & 4-bit DO |
7421-615200 |
