Qseven Carrier Board
| CPU Module Platform | |
|---|---|
| Qseven | Qseven Rev. 2.0 compliant |
| CPU | x86 CPU |
| Display | |
| HDMI | 1x HDMI |
| Storage | |
| SATA | 1x mSATA socket |
| USIM | 1x USIM socket |
| I/O Interface | |
| Ethernet | 2x RJ45 GbE |
| USB | 1x USB 3.0, 4x USB 2.0 |
| Audio | 1x Line-out/MIC-in |
| UART (Serial Port) | 1x RS-232 |
| Digital I/O | 16-bit Programmable GPIO |
| Expansion | |
| Mini-PCle | 2x Full-Length Mini-PCIe socket (PCIe + USB + USIM) |
| Other | |
| Watchdog | Multistage |
| Smart Battery Management | ACPI 5.0 compliant |
| Power | |
| DC Input Voltage | 9V~32Vdc |
| Operating System | |
| Windows/Linux | Depends on Q7 CPU module |
| Mechanical | |

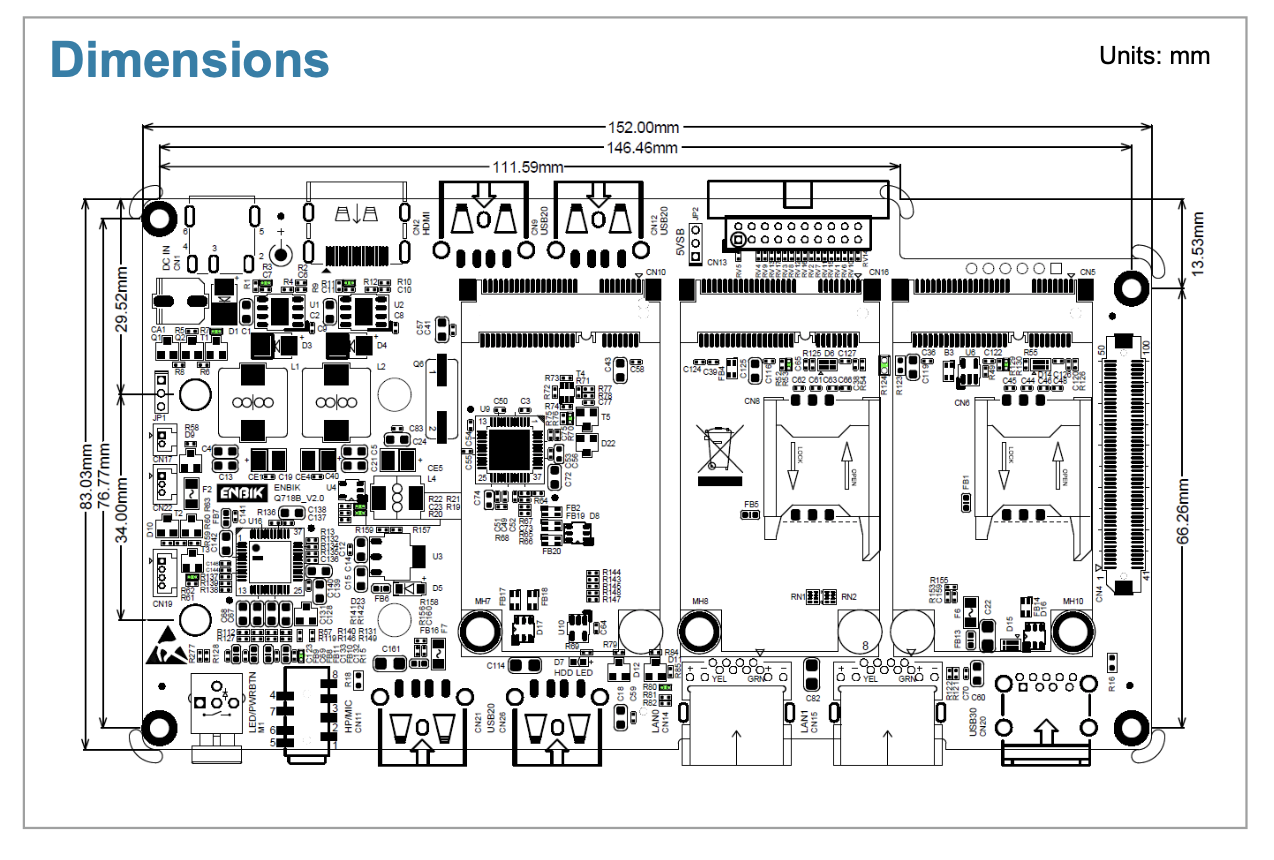

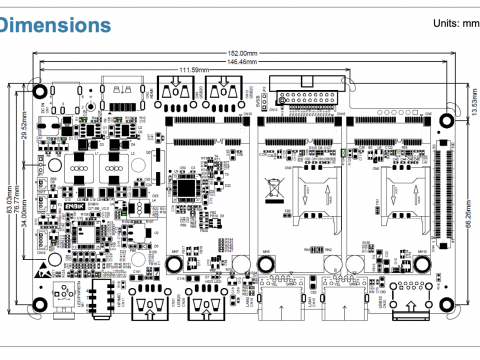

| Dimensions | 152 x 83mm |
| Environment | |
| Operation Temperature | -20°C ~ 70°C |
| Storage Temperature | -45°C ~ 85°C |
| Operation Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Certification | |
| Safety Certifications | CE/FCC Class A |

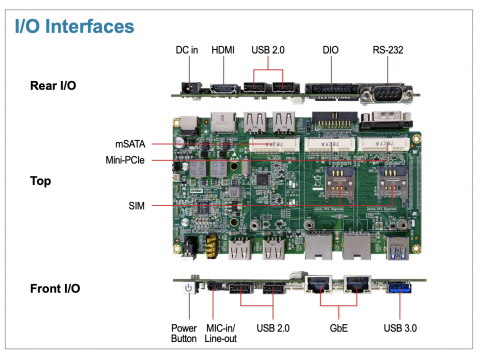

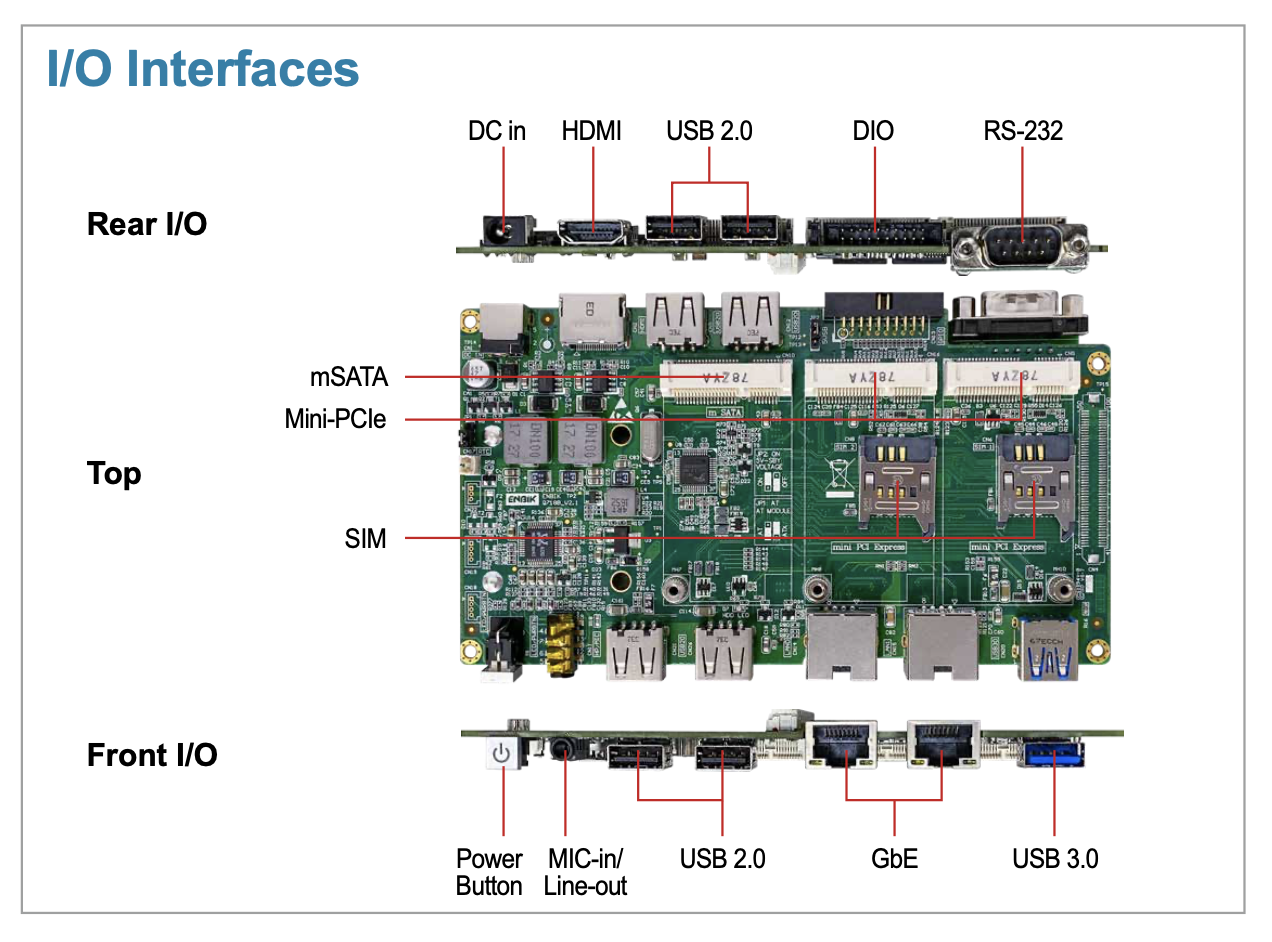

I/O Chart |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Name | HDMI | GbE(RJ45) | GbE/PoE(RJ45) | DIO | USB 3.0 | USB 2.0 | RS-232 | Mini-PCle | mSATA |
| Q718 | 1 | 3 | 3 | 16-bit Programmable GPIO | 1 | 4 | 1 | 2 | 1 |
| Model Name | Article Number (A/N) | |
|---|---|---|
| Q718 | Qseven Carrier board, 1x HDMI, 2x RJ45 GbE, 1x USB3.0, 4x USB2.0, 1x RS-232, 16-bit Programmable GPIO | 04001 |
