3rd/5th Generation Intel AtomTM, Celeron , Pentium Processor Ultra-slim Fanless Box Computer
System
|
| CPU |
Intel® Celeron® N2807 1.58 GHz, Dual Core L2 cache 1MB, 4.5W TDP |
| Intel® AtomTM E3815 1.46 GHz, Single Core L2 cache 512KB, 5W TDP |
| Intel® Pentium® N4200 1.1/2.5 GHz, Quad Core L2 cache 2MB, 6W TDP |
| Chipset |
Integrated in SoC |
| BIOS |
AMI Aptio® UEFI 2.x firmware |
| Memory |
DDR3L with 1333 MT/s, 8GB (Max.) |
Graphics
|
| Display |
1 x DDI |
| Controller |
Intel® HD Graphics Generation 7 |
Power
|
| DC Input |
9~32VDC |
Mechanical
|

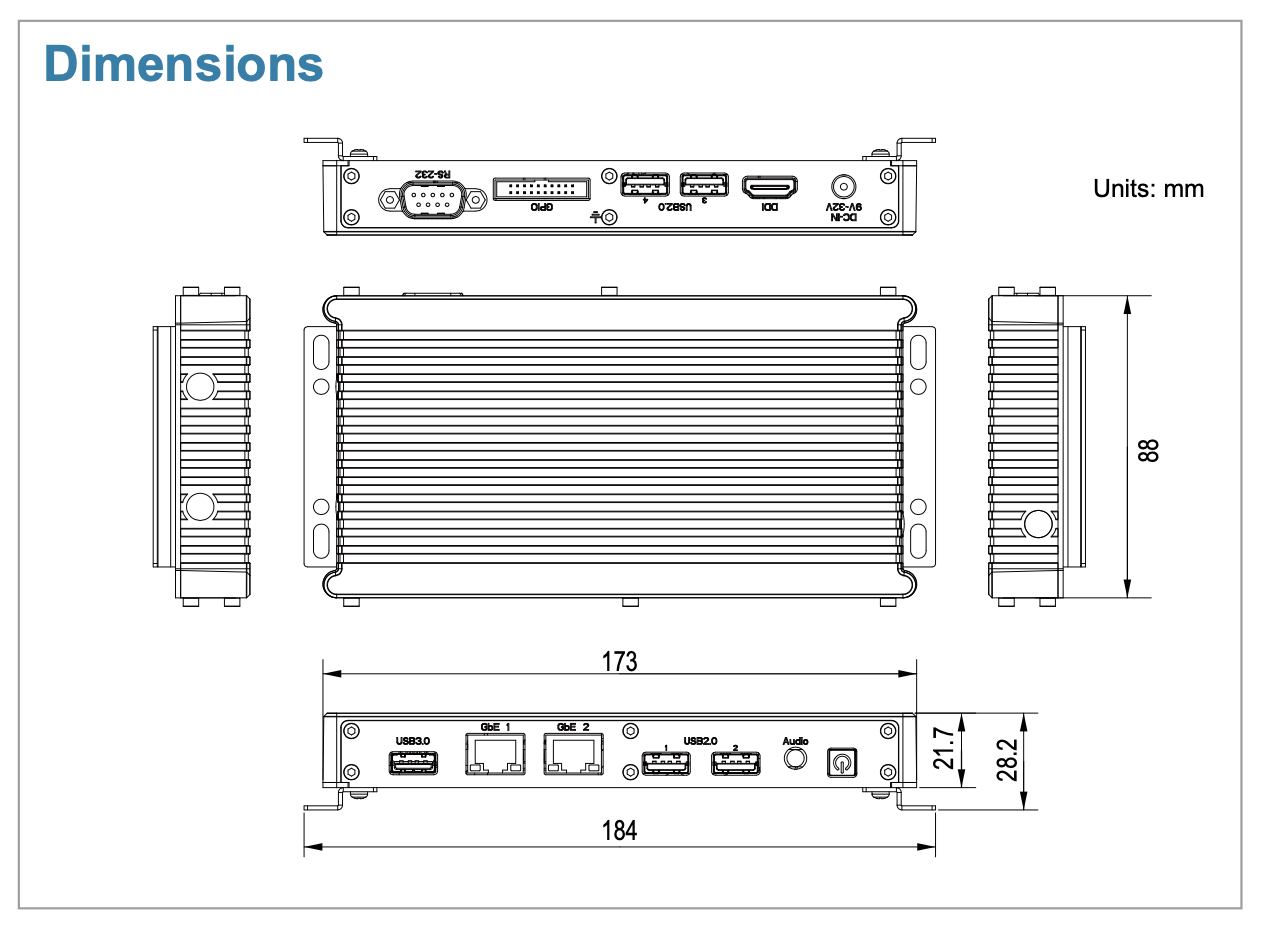

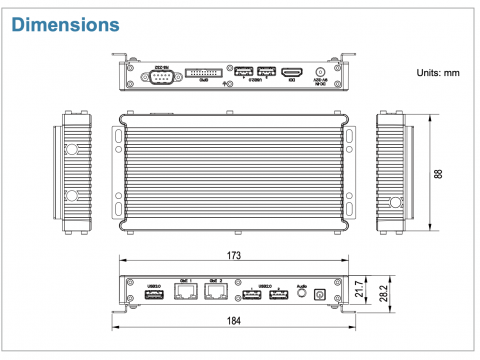

| Dimensions (WxDxH) |
173 x 88 x 21.7mm (6.81" x 3.46" x 0.85) |
| Weight |
0.75kg |

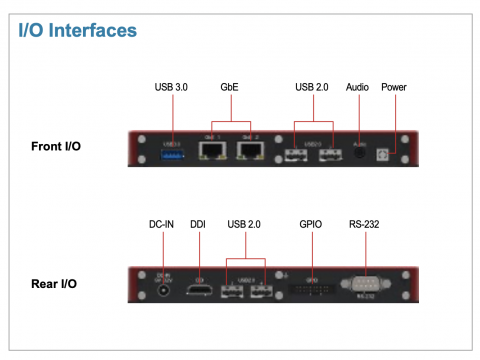

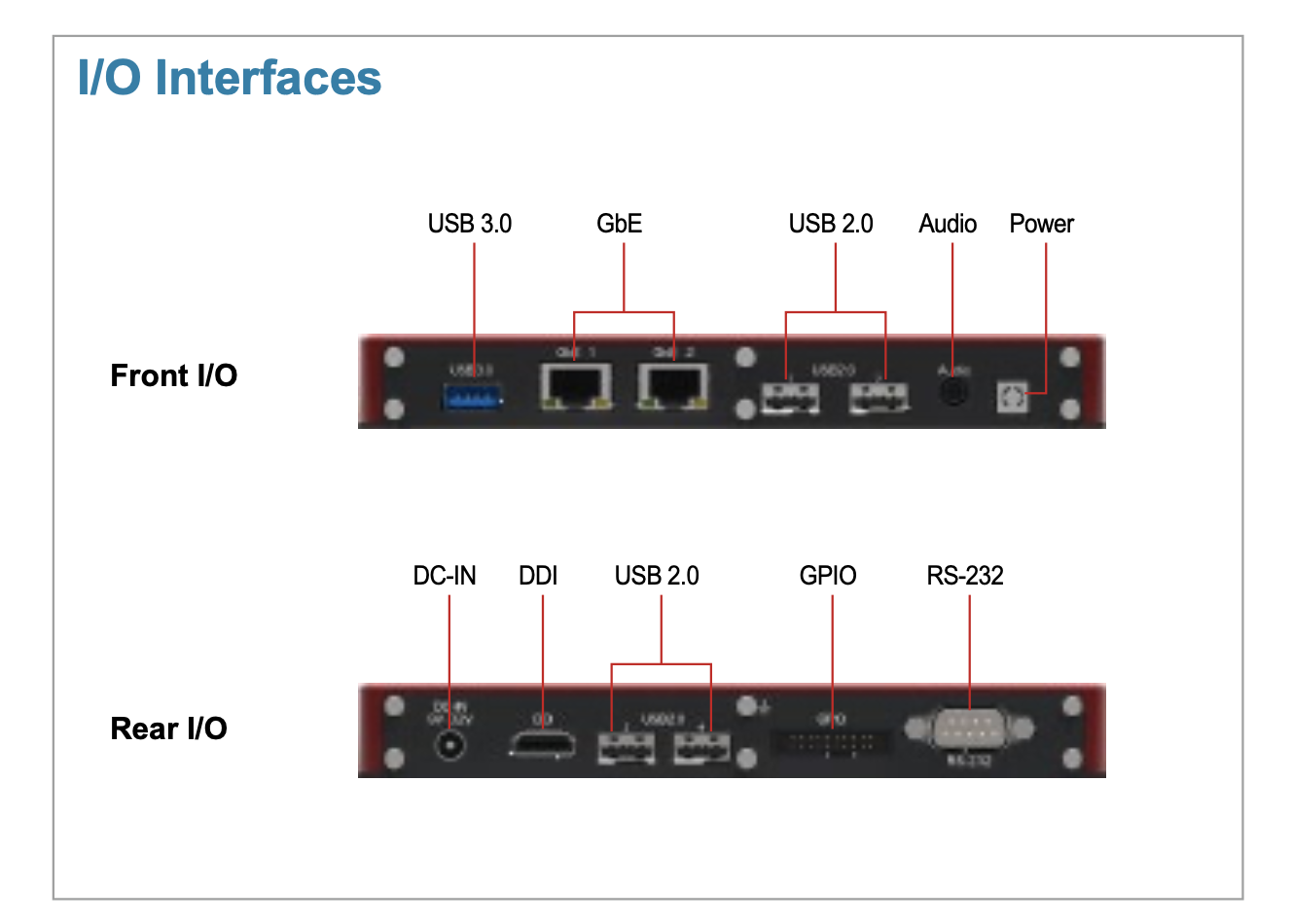

External IO
|
| Ethernet |
2x RJ45 GbE |
| USB 3.0/2.0 |
1x USB 3.0/2.0 port, 4x USB 2.0 ports |
| COM |
1x RS-232 port |
| Digital I/O |
16-bit programmable GPIO |
| Audio |
1x Mic in, Line out |
Storage
|
| SATA |
1x mSATA socket |
| SIM |
2x USIM slot |
Expansion Slot
|
| Mini-PCle |
2x full-Length Mini-PCIe socket (PCIe + USB + USIM) |
Other
|
| Watchdog Timer |
Multistage |
| Antenna |
3x antenna openings |
Environment
|
| Operating Temperature |
Operation: -20°C~60°C |
| Storage Temperture |
Storage: -40°C~85°C Operation: 10% to 90% |
| Operating Humidity |
10% ~ 90% Humidity, non-condensing |
| Storage Humidity |
5% ~ 95% Humidity, non-condensing |
| Certification |
CE/CB/FCC Class A |
OS Support
|
| Windows |
Windows 10 |
| Windows 10 IoT 64-bit |
| Windows 8 |
| Windows Embedded 8 Standard |
| Windows 7 |
| Windows 7 embedded compact |
| Linux |
Linux |
Ordering Information
| Model Name |
| U7-130 |
Intel® Celeron® N2807, 4GB |
| U7-131 |
Intel® AtomTM E3815, 1GB |
| U7-150 |
Intel® Pentium® N4200, 8GB, eMMC32G |
Optional Accessories
| Model Name |
| SSD |
mSATA 32GB/64GB/128GB/256GB |
| Adapter |
12VDC/40W power adapter |
| Power Cord |
US / Germany / UK / Australia / China |
| Wireless Module |
3G/3G+GPS/4G/4G+GPS/4G+WIFI |
