System
|
| CPU |
6th gen. Intel® CoreTM i7-6600U, 2.6 GHz, Dual Core, Turbo Boost 3.4 GHz, 4 MB Cache, TDP 15W, GT2 Graphics |
| 6th gen. Intel® CoreTM i5-6300U, 2.4 GHz, Dual Core, Turbo Boost 3.0 GHz, 3 MB Cache, TDP 15W, GT2 Graphics |
| 6th gen. Intel® CoreTM i3-6100U, 2.3 GHz, Dual Core, 3 MB Cache, TDP 15W, GT2 Graphics |
| Intel® Celeron® 3955U, 2.0 GHz, Dual Core, 2 MB Cache, TDP 15W, GT1 Graphics |
| Chipset |
Integrated PCH-LP |
| BIOS |
AMI Aptio® UEFI 2.x firmware |
| Memory |
SO-DIMM DDR4 up to 2133 MT/s |
| 2x SO-DIMM socket, up to 32GB |
Graphics
|
| Display |
1x DDI/VGA |
| 1x DP |
| Controller |
Intel® HD Graphics Generation 9 |
Power
|
| DC Input |
9~32VDC |
Mechanical
|

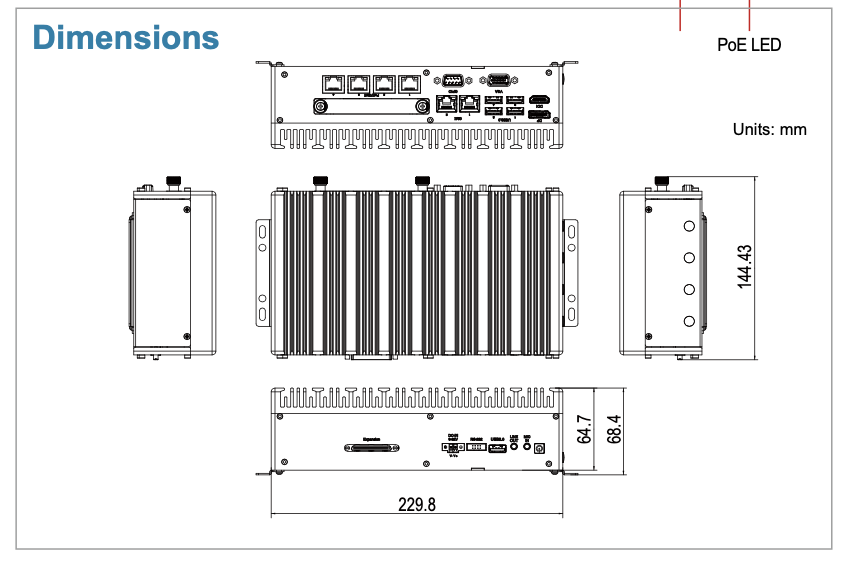

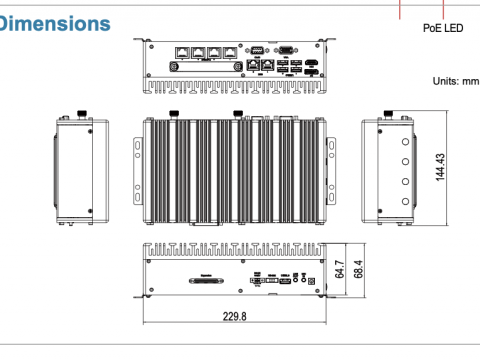

| Dimensions (WxDxH) |
238 x 129 x 63.7mm |
| Weight |
1.7kg |

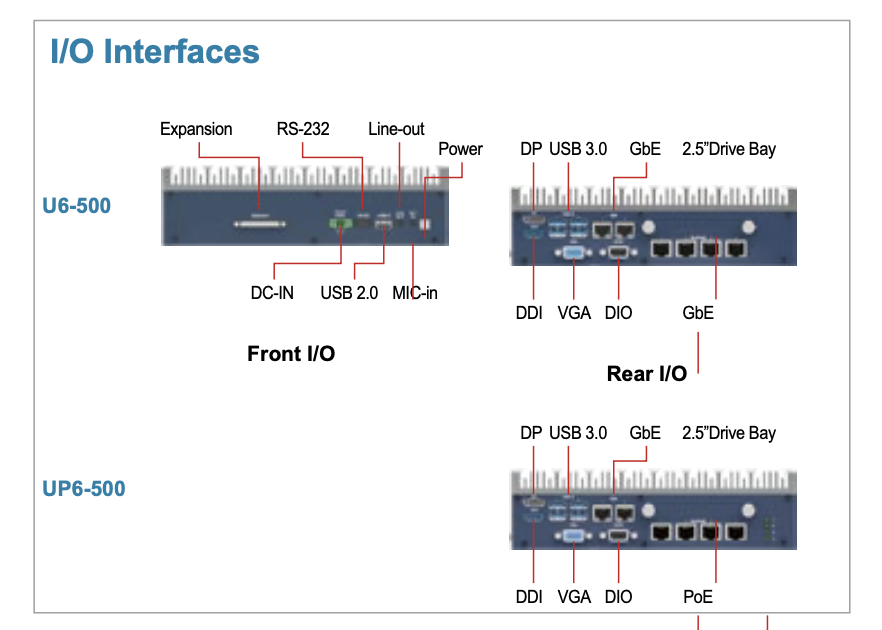

External IO
|
| Ethernet |
6x RJ45 GbE (U6-500) |
| 2x RJ45 GbE (UP6-500) |
| PoE |
4x RJ45 GbE with 802.3at PoE PSE (UP6-500) |
| USB 3.0/2.0 |
4x USB 3.0/2.0 port, 1x USB 2.0 |
| COM |
1x RS-232/422/485, 5x RS-232 |
| Digital I/O |
16-bit programmable GPIO |
| Audio |
1x Mic in, Line out |
Storage
|
| SATA |
1x mSATA socket |
| Drive Bay |
1x 2.5" Removable |
| SIM |
2x USIM slot |
Expansion Slot
|
| Mini-PCle |
2x full-Length Mini-PCIe socket (PCIe + USB + USIM) |
Other
|
| Watchdog |
Multistage |
| Smart Battery Management |
ACPI 5 .0 compliant (Reserve) |
Environment
|
| Operating Temperature |
Operation: -20°C~60°C |
| Storage Temperture |
Storage: -40°C~85°C Operation: 10% to 90% |
| Operating Humidity |
10% ~ 90% Humidity, non-condensing |
| Storage Humidity |
5% ~ 95% Humidity, non-condensing |
| Certification |
CE/CB/FCC Class A |
OS Support
|
| Windows |
Windows 10 |
| Windows 10 IoT 64-bit |
| Windows 8 |
| Windows Embedded 8 Standard |
| Windows 7 |
| Windows 7 embedded compact |
| Linux |
Linux |
