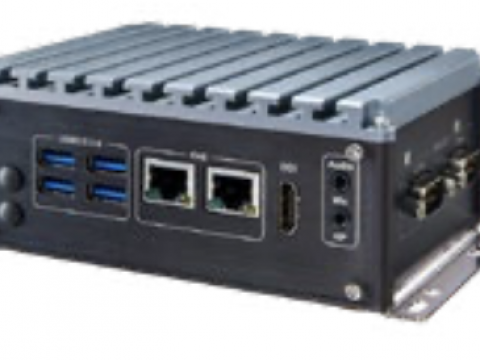

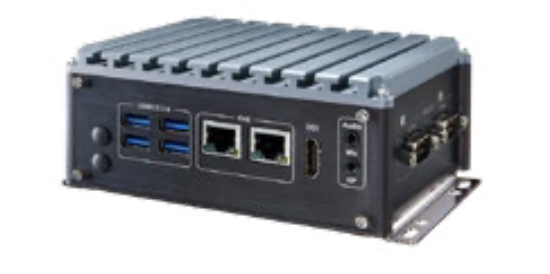

3rd Generation Intel AtomTM, Celeron Processor Ultra-compact Fanless Box Computer
System
|
| CPU |
Intel® Celeron® J1900 2.0 GHz, Quad Core L2 cache 2MB, 10W TDP |
| Intel® Celeron® N2807 1.58 GHz, Dual Core L2 cache 1MB, 4.5W TDP |
| Intel® AtomTM E3845 1.91 GHz, QuadCore L2 cache 2MB, 10W TDP |
| Intel® AtomTM E3827 1.75 GHz, Dual Core L2 cache 1MB, 8W TDP |
| Chipset |
Integrated in SoC |
| BIOS |
AMI Aptio® UEFI 2.x firmware |
| Memory |
DDR3L with 1333 MT/s, 8GB (Max.) |
Graphics
|
| Display |
1x DDI |
| Controller |
Intel® HD Graphics Generation 7 |
Power
|
| DC Input |
9~32VDC |
Mechanical
|

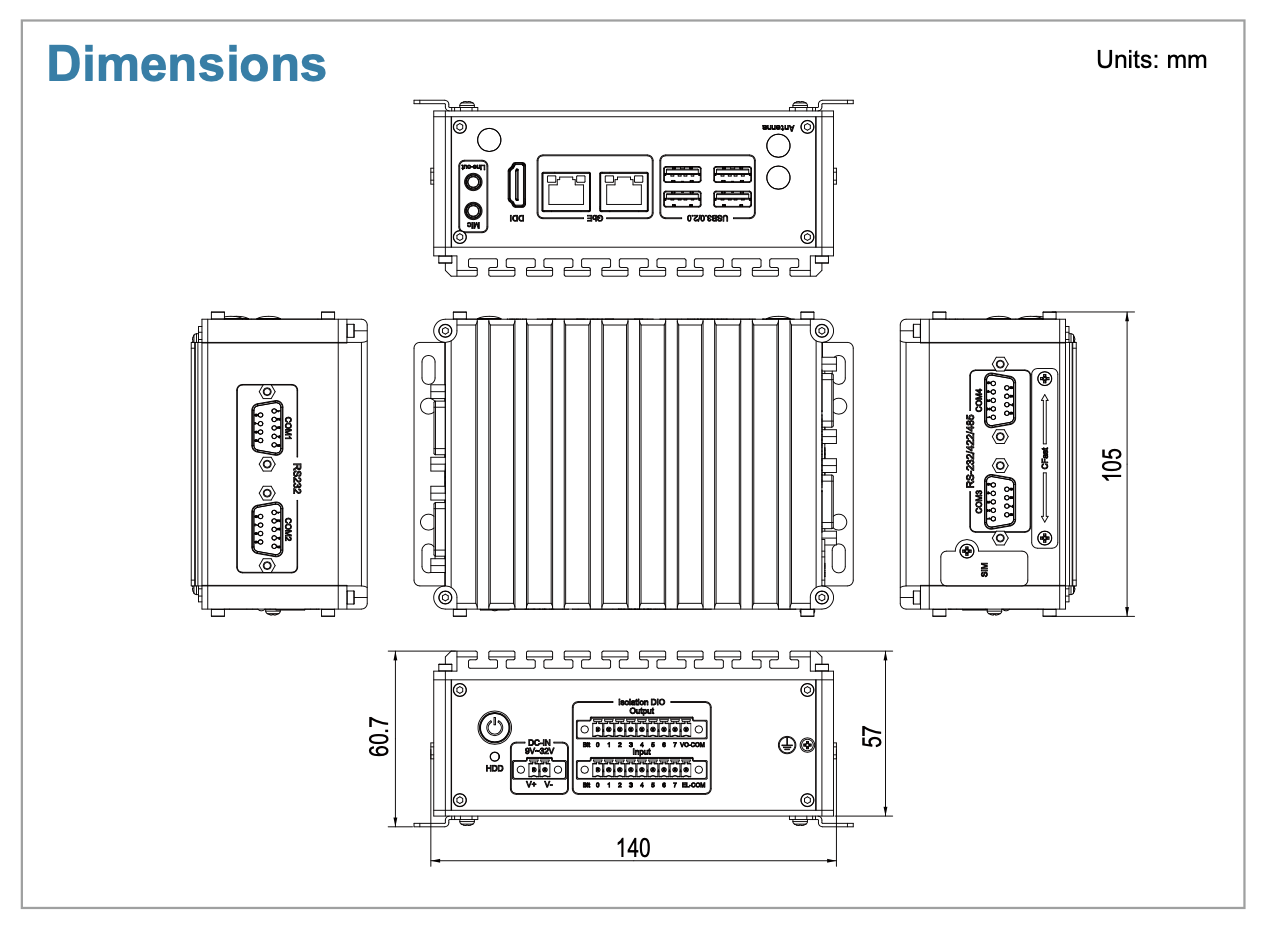

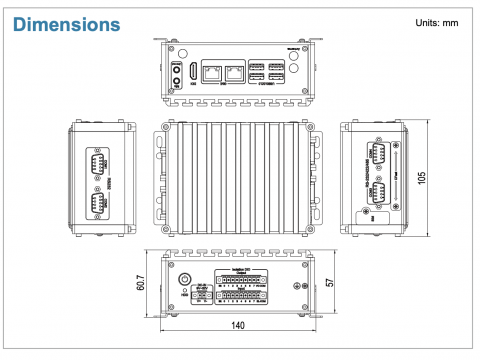

| Dimensions (WxDxH) |
138 x 100 x 57mm (5.43”x 3.94”x 2.24”) |
| Weight |
0.76kg |

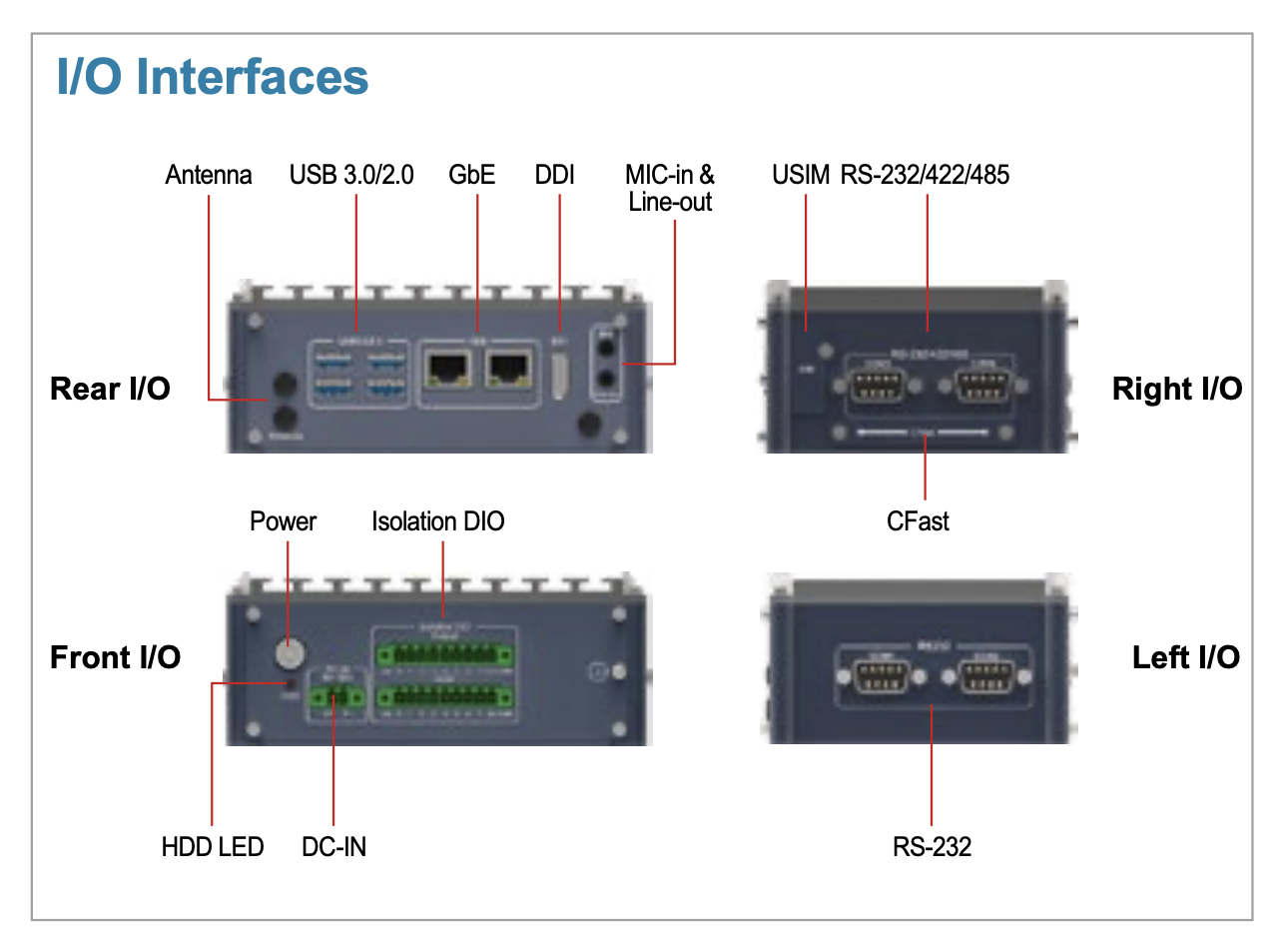

External IO
|
| Ethernet |
2x RJ45 GbE |
| USB 3.0/2.0 |
4x USB 3.0/2.0 port, 1x USB 2.0 port (internal) |
| COM |
4x RS-232 |
| Digital I/O |
8-bit Isolated GPI & 8-bit Isolated GPIO |
| Audio |
1x Mic in, Line out |
Storage
|
| SATA |
1x mSATA socket |
| Drive Bay |
2.5" HDD/SSD, share with CFast (optional) |
| SIM |
1x USIM sockett |
Expansion Slot
|
| Mini-PCle |
1x full-Length Mini-PCIe socket (PCIe + USB + USIM) |
| 1x half length Mini-PCIe socket (PCIe + USB) |
Other
|
| Watchdog |
Multistage |
| Antenna |
2x antenna openings |
Environment
|
| Operating Temperature |
Operation: -20°C~60°C |
| Storage Temperture |
Storage: -40°C~85°C Operation: 10% to 90% |
| Operating Humidity |
10% ~ 90% Humidity, non-condensing |
| Storage Humidity |
5% ~ 95% Humidity, non-condensing |
| Certification |
CE/CB/FCC Class A |
OS Support
|
| Windows |
Windows 10 |
| Windows 10 IoT |
| Windows 8 |
| Windows Embedded 8 Standard |
| Windows 7 |
| Windows 7 embedded compact |
| Linux |
Linux |
Ordering Information
| Model Name |
| U7-331 |
Intel® Celeron® N2807, 4GB |
| U7-333 |
Intel® Celeron® J1900, 4GB |
Optional Accessories
| Model Name |
| SSD |
mSATA 32GB/64GB/128GB/256GB |
| Adapter |
12VDC/40W power adapter |
| Power Cord |
US / Germany / UK / Australia / China |
| Wireless Module |
3G/3G+GPS/4G/4G+GPS/4G+WIFI |
