| CPU Module |
| Qseven |
Qseven Rev. 2.0 compliant |
| CPU |
x86 CPU |
| Display |
| VGA |
1x VGA optional (Q728HV) |
| LVDS |
1x 24-bit Dual channel |
| Storage |
| SATA |
1x mSATA socket |
| USIM |
1x USIM socket |

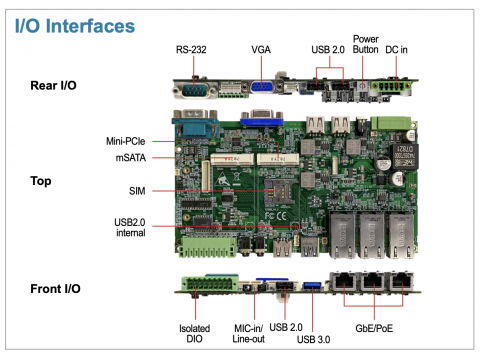

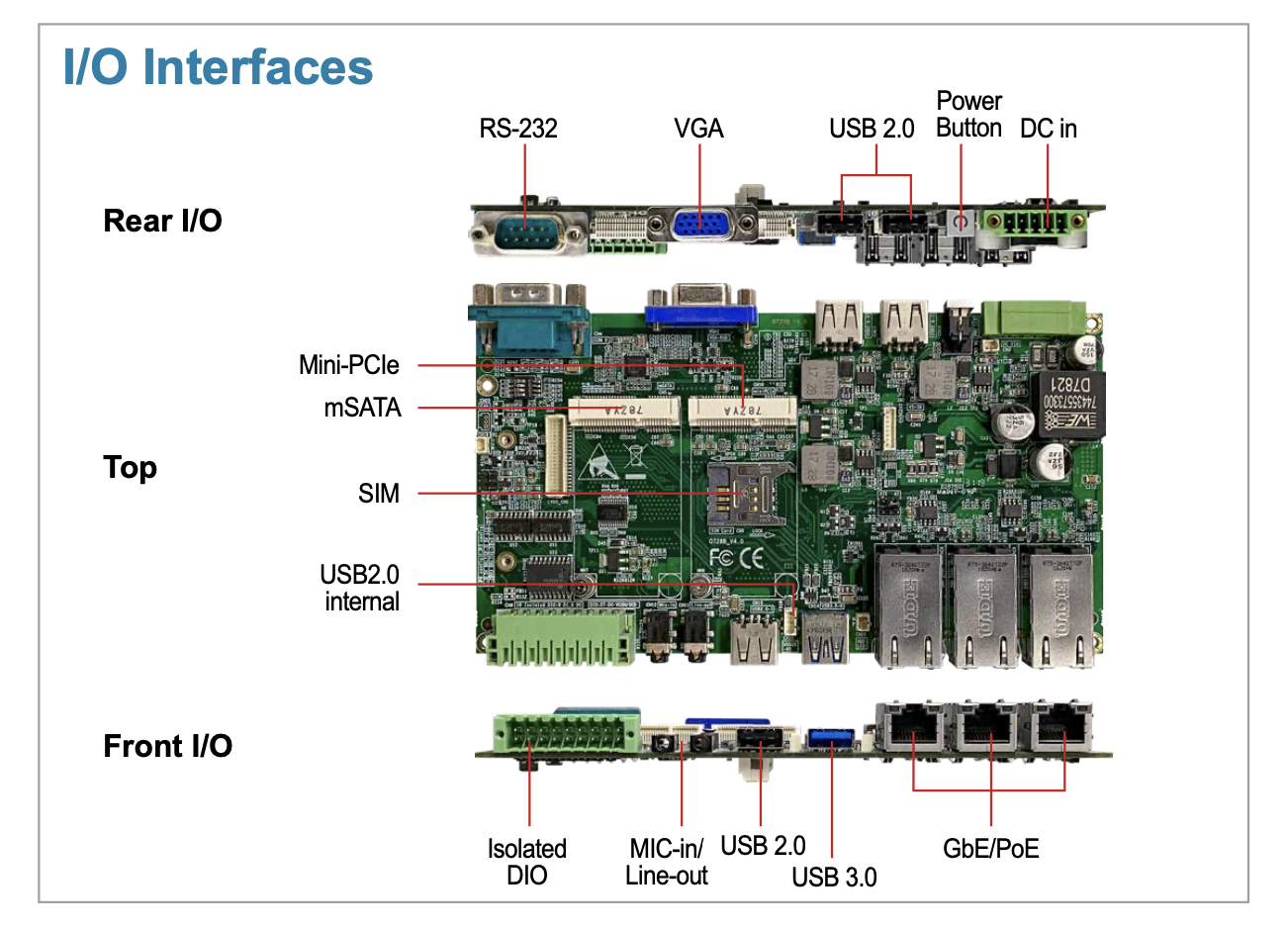

| I/O Interface |
| Ethernet |
3x RJ45 GbE with 802.3at PoE PSE (Q728V-3RP) |
| 3x RJ45 GbE (Q728V-3R) |
| USB |
1x USB 3.0/2.0, 3x USB 2.0, 1x USB 2.0 internal |
| Audio |
1x Line-out, 1x MIC-in |
| UART (Serial Port) |
1x RS-232 |
| Digital I/O |
Isolated 8-bit DI & 8-bit DO |
| Expansion |
| Mini-PCle |
1x Full-Length Mini-PCIe socket (PCIe + USB + USIM) |
| Other |
| Watchdog |
Multistage |
| Smart Battery Management |
ACPI 5.0 compliant |
| Power |
| DC Input Voltage |
9V~32Vdc |
| Operating System |
| Windows/Linux |
Depends on Q7 CPU module |
| Mechanical |

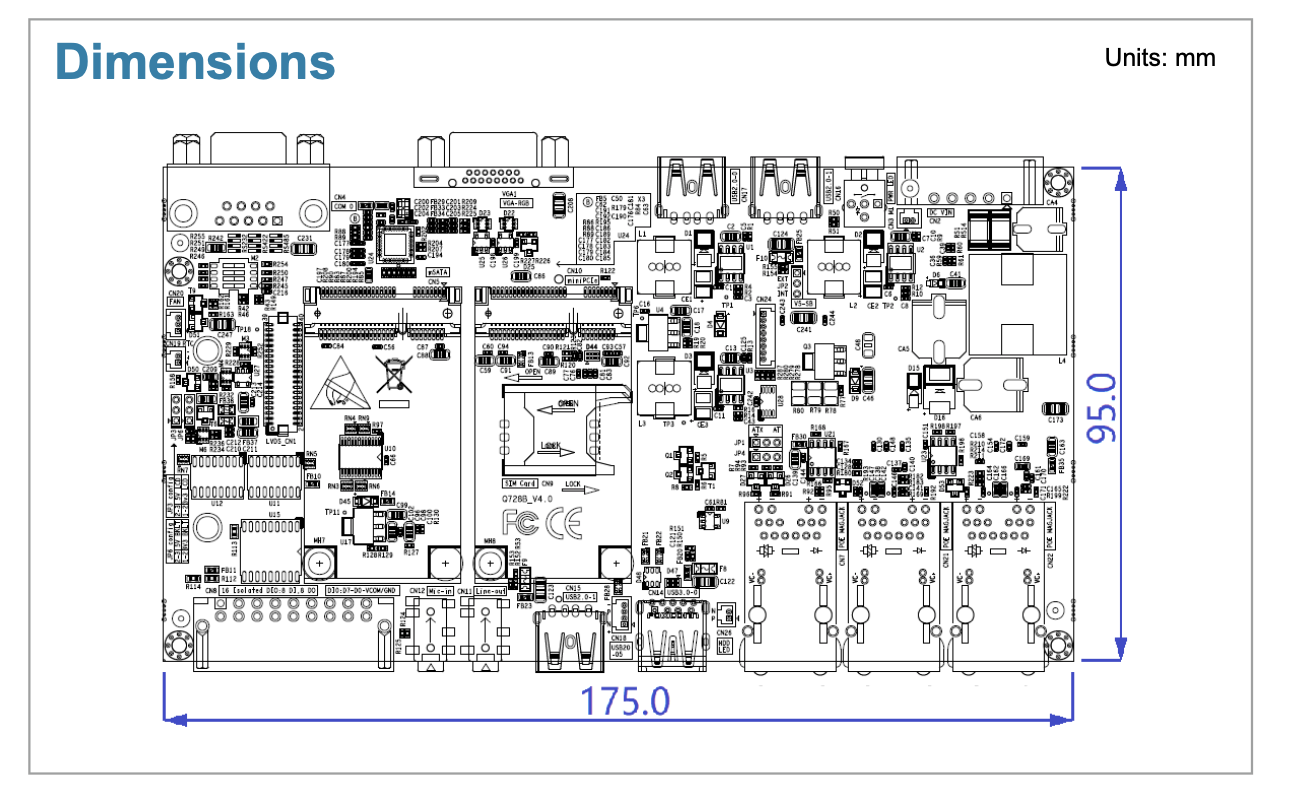

| Dimensions |
175 x 95mm |
| Environment |
| Operation Temperature |
-20°C ~ 70°C |
| Storage Temperature |
-45°C ~ 85°C |
| Operation Humidity |
10% to 90%, non-condensing |
| Storage Humidity |
5% to 95%, non-condensing |
| Certification |
| Safety Certifications |
CE/FCC Class A |
