System
| 6th Gen Intel® CoreTM (formerly Skylake U-Series) |
CoreTM i7-6600U (2/4 Cores, 2.6 GB/3.4 GHz, 4M Cache, 15W TDP) |
| CoreTM i5-6300U (2/4 Cores, 2.4 GHz/3.0 GHz, 3M Cache, 15W TDP) |
| CoreTM i3-6100U (2/4 Cores, 2.3 GHz, 3M Cache, 15W TDP) |
| Celeron® 3955U (2/2 Cores, 2.0 GHz, 2M Cache, 15W TDP) |
| 7th Gen Intel® CoreTM (formerly Skylake U-Series) |
CoreTM i7-7600U (2/4 Cores, 2.6 GB/3.4 GHz, 4M Cache, 15W TDP) |
| CoreTM i5-7300U (2/4 Cores, 2.4 GHz/3.0 GHz, 3M Cache, 15W TDP) |
| CoreTM i3-7100U (2/4 Cores, 2.3 GHz, 3M Cache, 15W TDP) |
| Celeron® 3965U (2/2 Cores, 2.0 GHz, 2M Cache, 15W TDP) |
| Memory |
1x SO-DIMM DDR4 2133 (32GB Max.) |
| Graphics |
Intel® HD Graphics 510 (3955U) |
| Intel® HD Graphics 520 (Skylake) |
| Intel® HD Graphics 610 (3965U) |
| Intel® HD Graphics 620 (Kaby Lake) |
| BIOS |
AMI 128Mbit SPI BIOS |
| AI Controller (AIC) |
AI for system monitoring and predictive analysis |
| Watchdog Timer |
Runtime: 10 – 65535 seconds |
| Powerup: 120 – 65535 seconds |
| TPM (optional) |
SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2) |
Power
|
| DC Input |
9~36VDC |
| Surge Protection |
80V/1ms |
| Power in Protection |
Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current |
| Remote/Ignition |
1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm) |
| Power Mode |
AT/ATX (BIOS setting) |

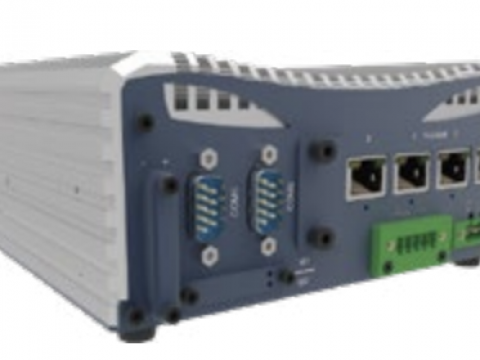

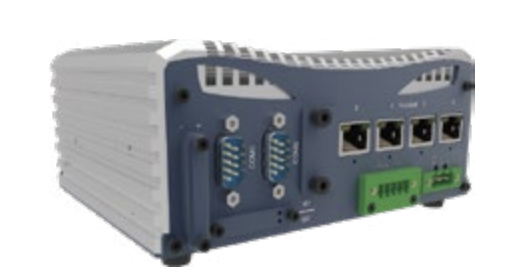

Mechanical
|

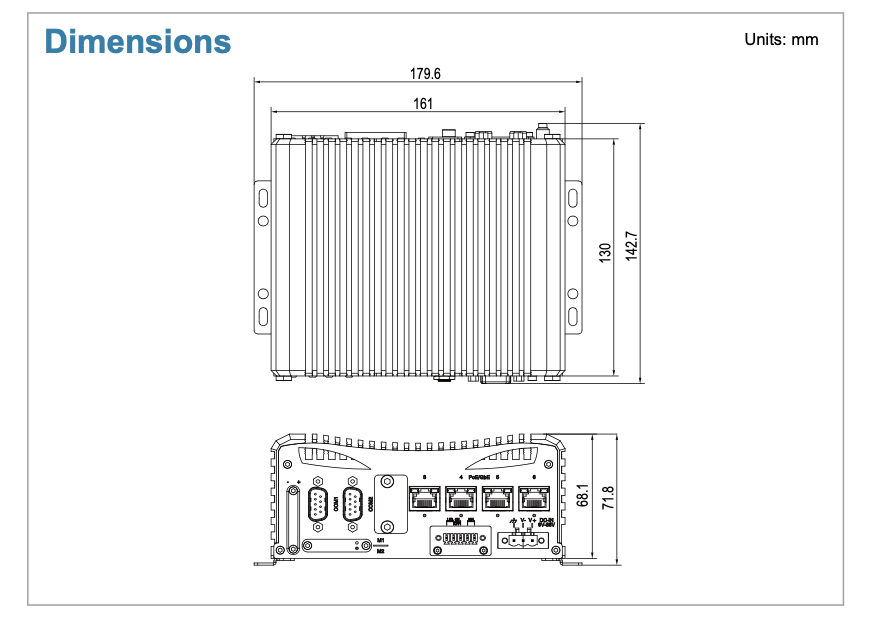

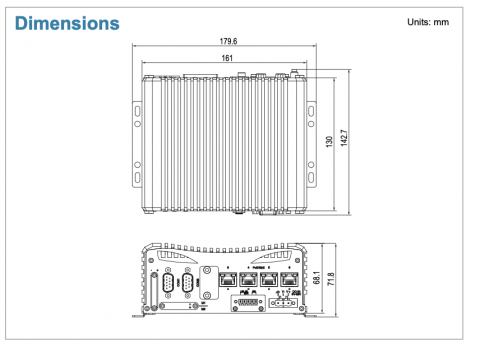

| Dimensions (WxDxH) |
161(W) x 130(D) x 68.1(H) mm (6.34" x 5.12" x 2.68") |
| Weight (net/gross) |
1.7kg |
| Mounting |
Wall mount bracket, foot stand |
| Construction |
Aluminum and metal chassis with fanless design |
| Battery |
Easily replaceable RTC battery holder |
| Dynamic Display Module (DDM) |
0.96 inch LCM work with AIC to display system status |

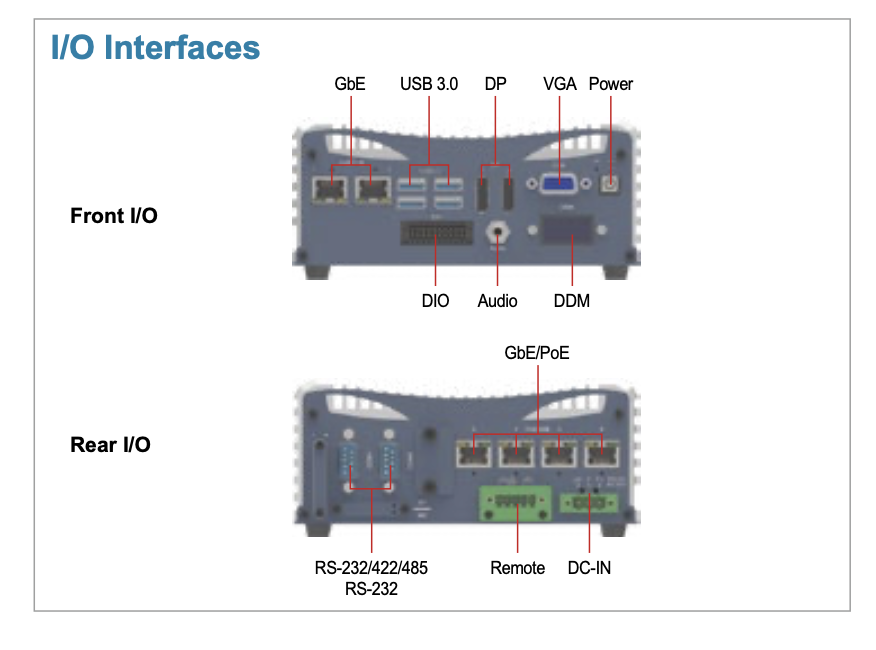

External IO
|
| Display Ports / Resolution |
2x DP/4096x2304@60Hz |
| 1x VGA/1920x1200@60Hz |
| Triple Display Ports Combinations |
2x DP + 1x VGA |
| Ethernet |
2x RJ45 GbE (Intel® i219 + Intel® i210) / Wake-on-LAN and PXE/i219 supports iAMT 11.0 (AIMG-6RP4i, AIMG-6RP4) |
| 6x RJ45 GbE (1x Intel® i219 + 5x Intel® i210) / Wake-on-LAN and PXE / i219 supports iAMT 11.0 (AIMG-6Ri, AIMG-6R) |
| PoE (optional) |
4x RJ45 GbE PoE+ (Intel® i210 ) 802.3at support up to 30W (AIMG-6RP4i, AIMG-6RP4) |
| USB 3.0/2.0 |
4x USB 3.0 ports via native XHCI controller (0.9A each port) |
| COM |
2x RS-232/422/485 (auto flow control), 1x RS-232 port |
| Digital I/O |
16-bit programmable DIO (AIMG-6RP4, AIMG-6R) |
| 8-bit isolated DI & 8-bit isolated DO, sink/source mode, 5~48V, 100mA (AIMG-6RP4i, AIMG-6Ri) |
| Audio |
ALC892 HD audio codec, Mic in, Line out |
| SIM |
2x SIM push-push slots |
Storage
|
| Internal Drive Bay |
1x internal SATA port for 2.5” HDD/SSD |
| mSATA |
1x mSATA (muxed with Mini-PCIe) |
| M.2 |
1x M.2 M Key 2242 |
Expansion Slot
|
| Mini-PCle |
1x full length Mini-PCIe (PCIe/mSATA + USB + USIM) |
| 1x full length Mini-PCIe (PCIe + USB + USIM) |
Other
|
| USB 2.0 Dongle |
Internal 1x USB 2.0 for dongle security key |
| Antenna |
4x antenna openings |
| LED |
Power status, HDD status, IO status |
Environment
|
| Operating Temperature |
Standard: -20°C to 50°C (-4°F~122°F), supports 15W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F) |
| Storage Temperture |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
95% @ 40°C (104°F), non-condensing |
| Vibration During Operation |
5Grms with SSD (IEC60068-2-64: random 5~500Hz) |
| Shock During Operation |
50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration) |
Certification
|
| EMC |
CE/FCC Class A |
| Safety Certifications |
CB |
OS Support
|
| Windows |
Windows 7 32-bit/64-bit (Skylake only) |
| Windows 8.1 32-bit/64-bit (Skylake only) |
| Windows Embedded Standard 7(Skylake only) |
| Windows Embedded 8 Standard (Skylake only) |
| Windows 10 64-bit |
| Windows 10 loT |
| Linux |
Linux |
