6th/7th gen Intel® platform (formerly Skylake/Kaby Lake), CoreTM U series processor
System |
|
|---|---|
| 6th Gen Intel® CoreTM (formerly Skylake U-Series) | CoreTM i7-6600U (2/4 Cores, 2.6 GB/3.4 GHz, 4M Cache, 15W TDP) |
| CoreTM i5-6300U (2/4 Cores, 2.4 GHz/3.0 GHz, 3M Cache, 15W TDP) | |
| CoreTM i3-6100U (2/4 Cores, 2.3 GHz, 3M Cache, 15W TDP) | |
| Celeron® 3955U (2/2 Cores, 2.0 GHz, 2M Cache, 15W TDP) | |
| 7th Gen Intel® CoreTM (formerly Skylake U-Series) | CoreTM i7-7600U (2/4 Cores, 2.8 GB/3.9 GHz, 4M Cache, 15W TDP) |
| CoreTM i5-7300U (2/4 Cores, 2.6 GHz/3.5 GHz, 3M Cache, 15W TDP) | |
| CoreTM i3-7100U (2/4 Cores, 2.4 GHz, 3M Cache, 15W TDP) | |
| Celeron® 3965U (2/2 Cores, 2.2 GHz, 2M Cache, 15W TDP) | |
| Memory | 1x SO-DIMM DDR4 2133 (32GB Max.) |
| Graphics | Intel® HD Graphics 510 (3955U) |
| Intel® HD Graphics 520 (Skylake) | |
| Intel® HD Graphics 610 (3965U) | |
| Intel® HD Graphics 620 (Kaby Lake) | |
| BIOS | AMI 128Mbit SPI BIOS |
| AI Controller (AIC) | AI system for monitoring and predictive analysis |
| Watchdog Timer | Runtime: 10 – 65535 seconds |
| Powerup: 120 – 65535 seconds | |
| TPM (optional) | SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2) |
Power |
|
| DC Input | 9-36VDC |
| Surge Protection | 80V/1ms |
| Power in Protection | Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current |
| Remote/Ignition | 1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm) |
| Power Mode | AT/ATX (BIOS setting) |
Mechanical |
|

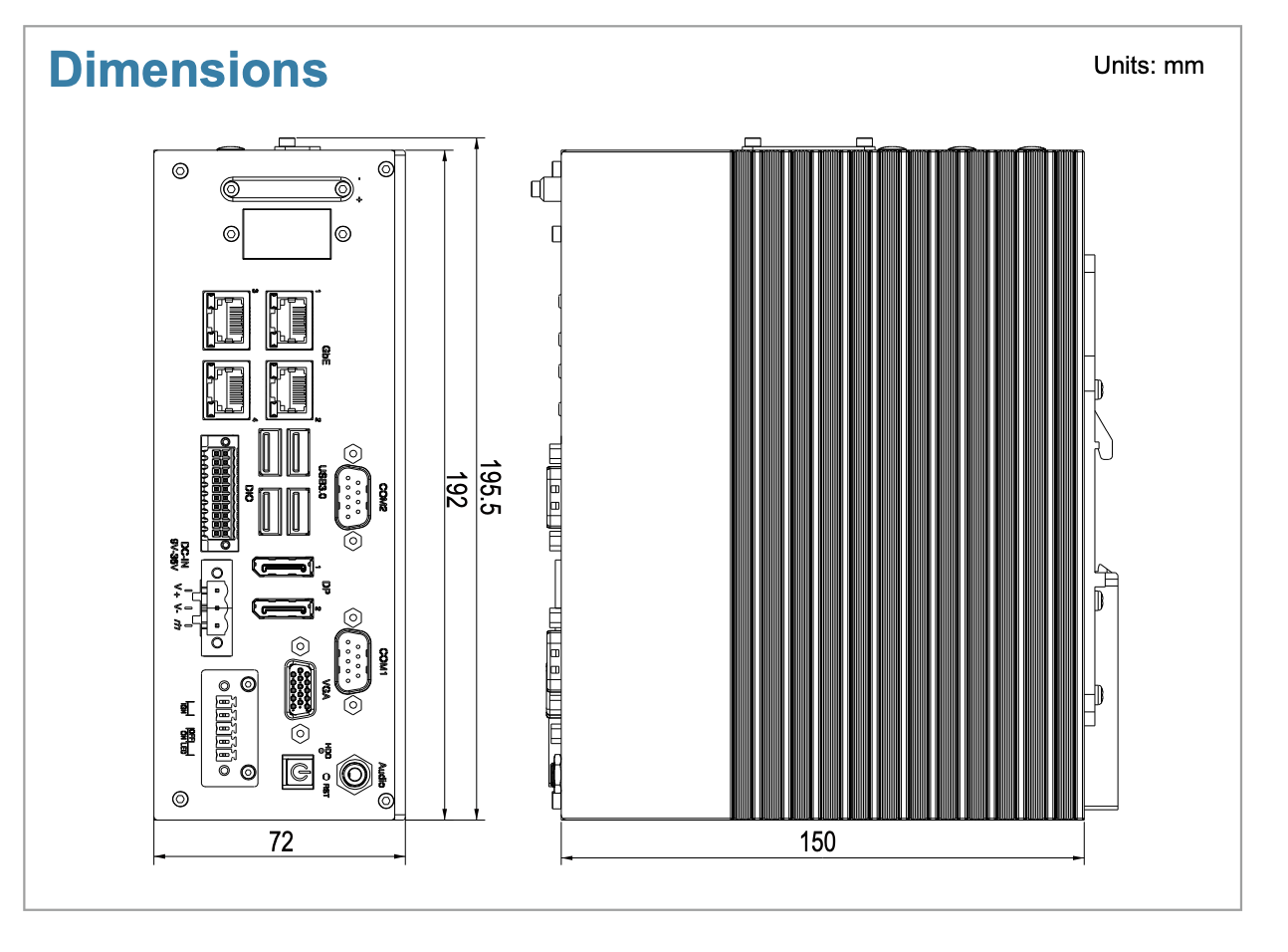

| Dimensions (WxDxH) | 72(W) x 150(D) x 192(H) mm (2.83" x 5.91" x 7.56") |
| Weight (net/gross) | 2kg |
| Mounting | DIN rail mount, wall mount |
| Construction | Aluminum and metal chassis with fanless design |
| Battery | Easily replaceable RTC battery holder |
| Dynamic Display Module (DDM) | 0.96 inch LCM work with AIC to display system status |

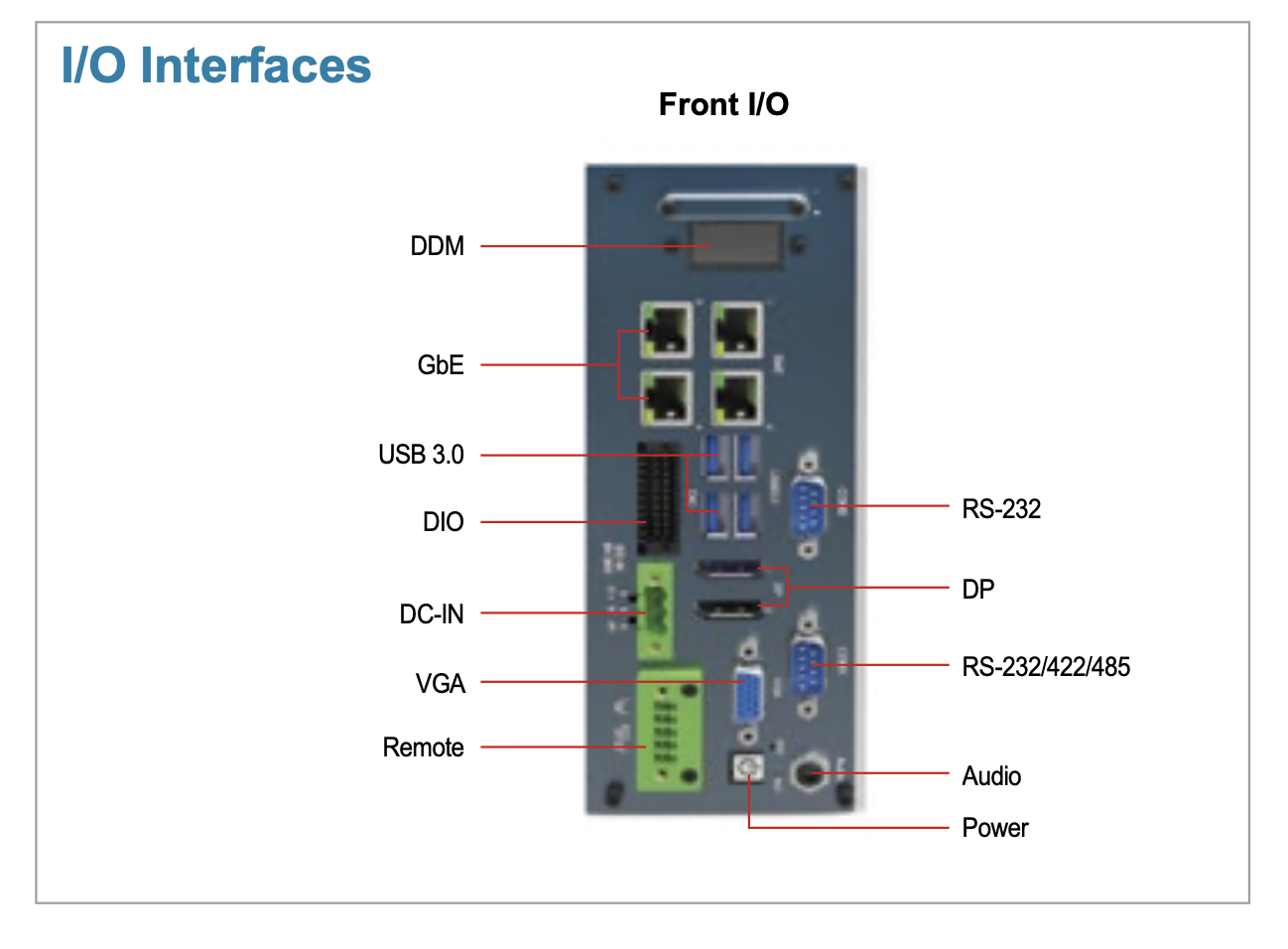

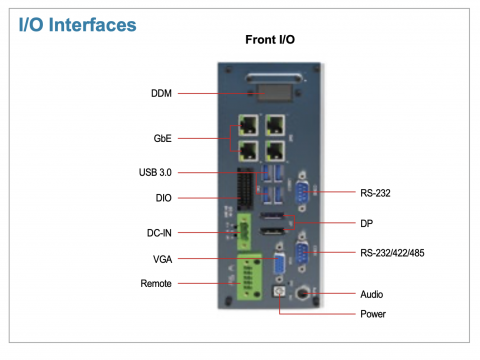

External IO |
|
| Display Ports/Resolution | 2x DP 4096x2304@60Hz |
| 1x VGA/1920x1200@60Hz | |
| Triple Display Ports | 2x DP + 1x VGA |
| Ethernet | Wake-on-LAN and PXE / i219 supports iAMT 11.0 |
| 2x RJ45 GbE (1x Intel® i219 + 1x Intel® i210) - (AIMD-2Ri/2R/6RP4i/6RP4) | |
| 4x RJ45 GbE (1x Intel® i219 + 3x Intel® i210) - (AIMD-4Ri/4R) | |
| PoE (optional) | PoE+ 802.3at support up to 30W |
| 4x RJ45 GbE/PoE (1x Intel® i219 + 3x Intel® i210) - (AIMD-4Ri/4R) | |
| USB 3.0/2.0 | 4x USB 3.0 ports via native XHCI controller (0.9A each port) |
| COM | 1x RS-232/422/485 (auto flow control), 1x RS-232 - (AIMD-2Ri/2R) |
| 2x RS-232/422/485 (auto flow control) - (AIMD-4Ri/4R/4RP4i/4RP4) | |
| Digital I/O | 16-bit programmable DIO (AIMD) |
| 8-bit isolated DI & 8-bit isolated DO, sink/source mode, 5~48V, 100mA (AIMD-i) | |
| Audio | ALC892 HD audio codec, Mic in, Line out |
| SIM | 2x SIM push-push slots |
Storage |
|
| Internal Drive Bay | 1x Internal SATA port for 2.5” HDD/SSD, support up to 5TB (15mm height) HDD |
| 1x swappable SATA Tray for 2.5” HDD/SSD, support up to 10mm heightHDD/SSD optional by ODM | |
| mSATA | 1x mSATA (muxed with Mini-PCIe) |
| M.2 | 1x M.2 M Key 2242 |
Expansion Slot |
|
| Mini-PCle | 1x full length Mini-PCIe (PCIe/mSATA + USB + USIM) |
| 1x full length Mini-PCIe (PCIe + USB + USIM) | |
Other |
|
| USB 2.0 Dongle | Internal 1 x USB 2.0 for dongle secutity |
| Antenna | 4x antenna openings |
| LED | Power status, HDD status, IO status |
Environment |
|
| Operating Temperature | Standard: -20°C to 50°C (-4°F~122°F), supports 15W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 95% @ 40°C (104°F), non-condensing |
| Vibration During Operation | 5Grms with SSD (IEC60068-2-64: random 5~500Hz) |
| Shock During Operation | 50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration) |
Certification |
|
| EMC | CE/FCC Class A |
| Safety Certifications | CB |
OS Support |
|
| Windows | Windows 7 32-bit/64-bit (Skylake only) |
| Windows 8.1 32-bit/64-bit (Skylake only) | |
| Windows Embedded Standard 7(Skylake only) | |
| Windows Embedded 8 Standard (Skylake only) | |
| Windows 10 64-bit | |
| Windows 10 IoT | |
| Linux | Linux |
I/O Comparison Chart |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Name | DP | VGA | GbE (RJ45) | GbE/PoE (RJ45) | DIO | USB 3.0 | RS-232 | RS-232/422/485 | Internal 2.5" Disk Bay |
| AIMD-2Ri | 2 | 1 | 2 | 0 | 8-bit isolated DI & 8-bit isolated DO | 4 | 1 | 1 | 1 (Internal or External) |
| AIMD-2R | 2 | 0 | 16-bit DIO | 1 | 1 | ||||
| AIMD-4Ri | 4 | 0 | 8-bit isolated DI & 8-bit isolated DO | 0 | 2 | ||||
| AIMD-4R | 4 | 0 | 16-bit DIO | 0 | 2 | ||||
| AIMD-4RP4i | 0 | 4 | 8-bit isolated DI & 8-bit isolated DO | 0 | 2 | ||||
| AIMD-4RP4 | 0 | 4 | 16-bit DIO | 0 | 2 |
| Model Name | Article Number (A/N) | ||
|---|---|---|---|
| AIMD6-6600-2Ri | CoreTM i7-6600U CPU, 2x GbE (RJ45) | 05002 | |
| AIMD6-6300-2Ri | CoreTM i5-6300U CPU, 2x GbE (RJ45) | 05004 | |
| AIMD-2Ri | AIMD6-6100-2Ri | CoreTM i3-6100U CPU, 2x GbE (RJ45) | 05006 |
| AIMD6-3955-2Ri | Celeron® 3955U CPU, 2x GbE (RJ45) | 05008 | |
| AIMD7-7200-2Ri | CoreTM i5-7200U CPU, 2x GbE (RJ45) | 05256 | |
| AIMD6-6600-4Ri | CoreTM i7-6600U CPU, 4x GbE (RJ45) | 05010 | |
| AIMD6-6300-4Ri | CoreTM i5-6300U CPU, 4x GbE (RJ45) | 05012 | |
| AIMD-4Ri | AIMD6-6100-4Ri | CoreTM i3-6100U CPU, 4x GbE (RJ45) | 05014 |
| AIMD6-3955-4Ri | Celeron® 3955U CPU, 4x GbE (RJ45) | 05016 | |
| AIMD7-7200-4Ri | CoreTM i5-7200U CPU, 4x GbE (RJ45) | 05266 | |
| AIMD6-6600-4RP4i | CoreTM i7-6600U CPU, 4x GbE/PoE (RJ45) | 05034 | |
| AIMD6-6300-4RP4i | CoreTM i5-6300U CPU,4x GbE/PoE(RJ45) | 05036 | |
| AIMD-4RP4i | AIMD6-6100-4RP4i | CoreTM i3-6100U CPU, 4x GbE/PoE (RJ45) | 05038 |
| AIMD6-3955-4RP4i | Celeron® 3955U CPU, 4x GbE/PoE (RJ45) | 05040 | |
| AIMD7-7200-4RP4i | CoreTM i5-7200U CPU, 4x GbE/PoE (RJ45) | 05296 |
| Model Name | Article Number (A/N) | ||
|---|---|---|---|
| AIMD6-6600-2R | CoreTM i7-6600U CPU, 2x GbE (RJ45) | 05001 | |
| AIMD6-6300-2R | CoreTM i5-6300U CPU, 2x GbE (RJ45) | 05003 | |
| AIMD-2R | AIMD6-6100-2R | CoreTM i3-6100U CPU, 2x GbE (RJ45) | 05005 |
| AIMD6-3955-2R | Celeron® 3955U CPU, 2x GbE (RJ45) | 05007 | |
| AIMD7-7200-2R | CoreTM i5-7200U CPU, 2x GbE (RJ45) | 05255 | |
| AIMD6-6600-4R | CoreTM i7-6600U CPU, 4x GbE (RJ45) | 05009 | |
| AIMD6-6300-4R | CoreTM i5-6300U CPU, 4x GbE (RJ45) | 05011 | |
| AIMD-4R | AIMD6-6100-4R | CoreTM i3-6100U CPU, 4x GbE (RJ45) | 05013 |
| AIMD6-3955-4R | Celeron® 3955U CPU, 4x GbE (RJ45) | 05015 | |
| AIMD7-7200-4R | CoreTM i5-7200U CPU, 4x GbE (RJ45) | 05265 | |
| AIMD6-6600-4RP4 | CoreTM i7-6600U CPU, 4x GbE/PoE (RJ45) | 05033 | |
| AIMD6-6300-4RP4 | CoreTM i5-6300U CPU,4x GbE/PoE(RJ45) | 05035 | |
| AIMD-4RP4 | AIMD6-6100-4RP4 | CoreTM i3-6100U CPU, 4x GbE/PoE (RJ45) | 05037 |
| AIMD6-3955-4RP4 | Celeron® 3955U CPU, 4x GbE/PoE (RJ45) | 05039 | |
| AIMD7-7200-4RP4 | CoreTM i5-7200U CPU, 4x GbE/PoE (RJ45) | 05295 |
| Isolated Module | |
|---|---|
| iDIO-818O | 8-bit isolated DI & 8-bit isolated DO module |
| AC-DC Power Adapter | AC-DC power adapter with pitch 5.0mm 3-pin terminal block plug |
| ADT-24V60-T3A | 24V/60W |
| ADT-24V90-T3A | 24V/90W |
| ADT-24V120-T3A | 24V/120W |
| ADT-24V160-T3A | 24V/160W |
| ADT-24V220-T3A | 24V/220W |
| ADT-24V280-T3A | 24V/280W |
| AC Power Cord | H05VV-F 3G 0.75mm2, 1.8m, 250V, 10A |
| PCBL-B12 | YP12-YC12:category B type plug, TW/JP/US/CA/TH/PH/Central America |
| PCBL-D03 | YP03-YC12:category D type plug, CN |
| PCBL-D35 | YP35-YC12:category D type plug, AU/NZ |
| PCBL-G22 | YP22-YC12:category G type plug, DE |
| PCBL-I61 | YP61-YC12:category I type plug, UK/HK/MO/SG/MY |
| SO-DIMM Memory | DDR4-2133/2400 2GB/4GB/8GB/16GB/32GB |
| SSD | mSATA SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB |
| 2.5 inch SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB | |
| 2.5 inch HDD: 500GB/1TB/1.5TB/2TB | |
| Wireless Module | Mini-PCIe wireless module for 3G/4G LTE/Wi-Fi/BT/NB-IoT/GPS/BDS |
| Cable & Connector | |
| CBL-S01 | SATA (Data + Power) cable x1 |
| TBP5-S03 | 3-Pin, pitch5.0mm Female Terminal Block Plug for DC input x1 |
| TBP3-S05 | 5-Pin, pitch 3.81mm Female Terminal Block Plug for remote connector x 1 |
| TBP3-D20 | 2x10-Pin, pitch2.54mm Female Terminal Block Plug for DIO connector x1 |
| Mounting Kit | |
| UTA-159 | Phoenix Contact DIN Rail Clip with M3x6 screws x6 |
| Item No. | |
|---|---|

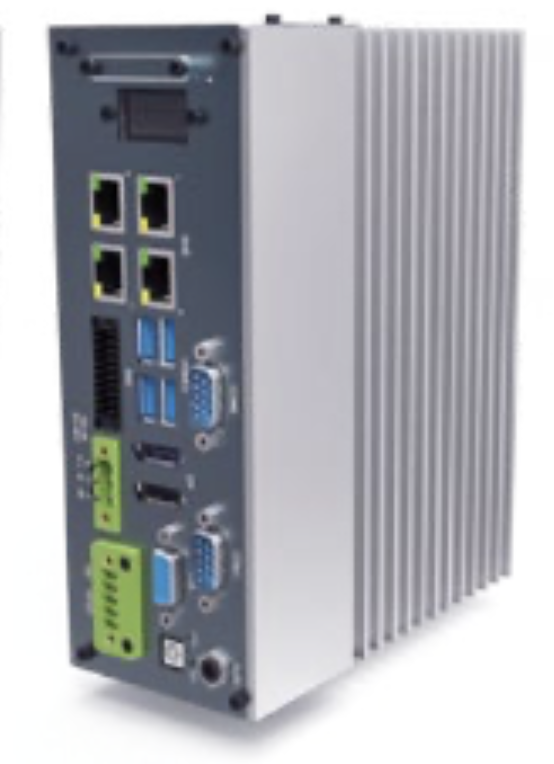

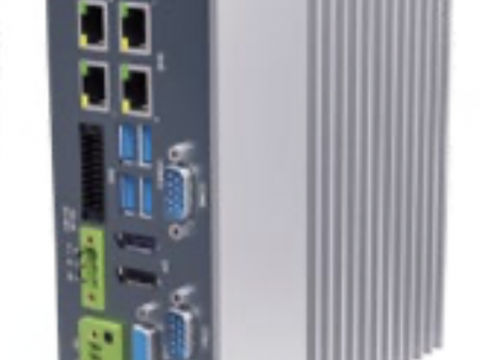

| 1 | Eagle Eyes Embedded Box PC AIMD x1 |
