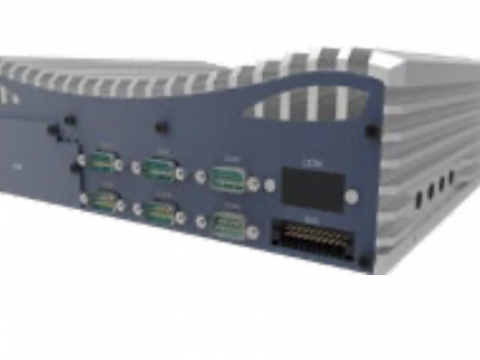

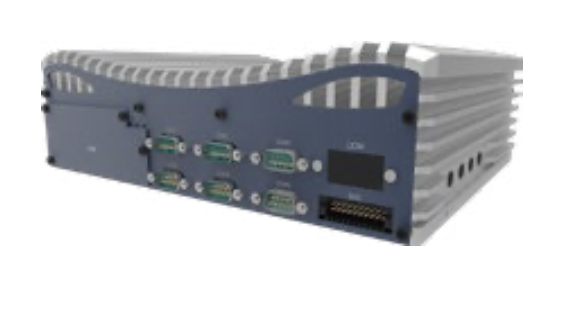

System
|
| CPU |
6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake) |
| LGA1151 socket type CPU (supports TDP up to 35W) |
| Chipset |
Intel® C236 Chipset |
| Memory |
2x DDR4 SO-DIMM Max. 64GB |
| (Skylake: DDR4-2133; Kaby Lake: DDR4-2400) |
| Graphics |
Xeon®: HD Graphics P530 (Skylake)/P630 (Kaby Lake) |
| CoreTM I Series: HD Graphics 530 (Skylake)/630 (Kaby Lake) |
| Pentium®/Celeron®: HD Graphics 510 (Skylake)/610 (Kaby Lake) |
| BIOS |
AMI 128Mbit SPI BIOS |
| AI Controller (AIC) |
AI for system monitoring and predictive analysis |
| Watchdog Timer |
Runtime: 10 – 65535 seconds |
| Powerup: 120 – 65535 seconds |
| TPM (optional) |
SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2) |
Power
|
| DC Input |
9~36VDC |
| Surge Protection |
200V/1ms |
| Power in Protection |
Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current |
| Remote/Ignition |
1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm) |
| Power Mode |
AT/ATX (BIOS setting) |
Mechanical
|

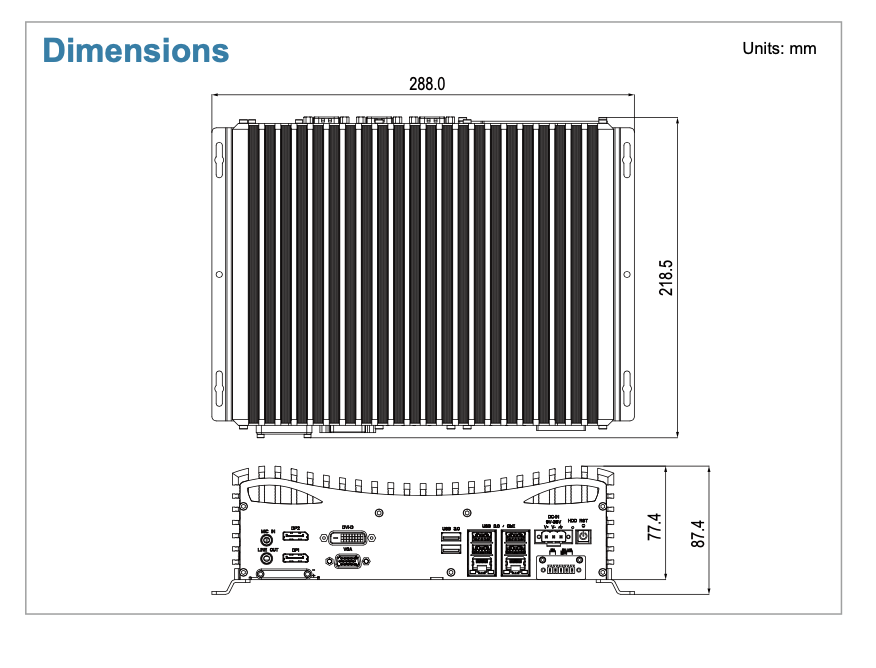

| Dimensions (WxDxH) |
260(W) x 206(D) x 77.42(H) mm (10.24" x 8.11" x 3.05") |
| Weight (net/gross) |
3.7kg |
| Mounting |
Foot stand; wall mount bracket (optional) |
| Construction |
Aluminum and metal chassis with fanless design |
| Battery |
Easily replaceable RTC battery holder |
| Dynamic Display Module (DDM) |
| 0.96 inch LCM work with AIC to display system status |

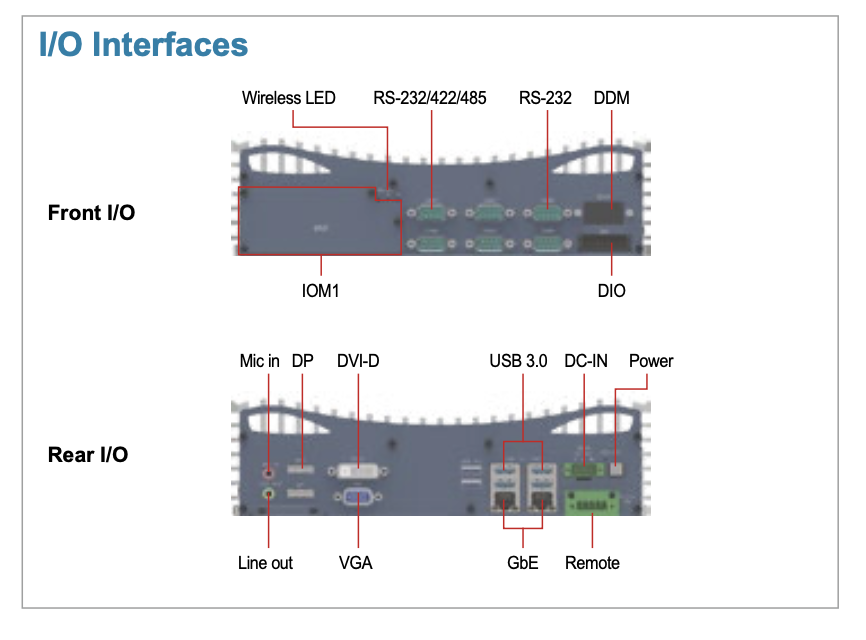

External IO
|
| Display Ports / Resolution |
2x DP/4096x2304@60Hz |
| 1x DVI-D/1920x1200@60Hz |
| 1x VGA/1920x1200@60Hz |
| Triple Display Ports Combinations |
2x DP + 1x DVI-D |
| 2x DP + 1x VGA |
| 1x DP + 1x DVI-D + 1x VGA |
| Ethernet |
2x RJ45 GbE (Intel® i219 + Intel® i210) / Wake-on-LAN and PXE/i219 supports iAMT 11.0 |
| PoE |
NA |
| USB 3.0/2.0 |
6x USB 3.0 ports via native XHCI controller (0.9A each port) |
| COM |
2x RS-232/422/485 (auto flow control), 4x RS-232 port |
| Digital I/O |
16-bit programmable DIO (AIHL)) |
| 8-bit isolated DI & 8-bit isolated DO, Sink/Source Mode, 5~48V, 100mA |
| (AIHL-i) |
| Audio |
ALC892 HD audio codec, Mic in, Line out |
| SIM |
3x SIM push-push slots |
Storage
|
| Internal Drive Bay |
3x internal SATA port for 2.5” HDD/SSD |
| mSATA |
3x full length mSATA (muxed with Mini-PCIe) |
| Removable Drive Bay |
NA |
| NVMe Support |
2x M.2 2280 NVMe supported via expansion slot optional |
| RAID Mode |
RAID 0/1/5 |
Expansion Slot
|
| Mini-PCle |
3x full length Mini-PCIe (muxed with mSATA, auto detection) |
| IOM1(optional) |
Supports IOM1 module |
Other
|
| USB 2.0 Dongle |
Internal 1x USB 2.0 for dongle security key |
| Antenna |
4x antenna openings |
| LED |
Power status, HDD status, IO status |
Environment
|
| Operating Temperature |
Standard: -20°C to 50°C (-4°F~122°F), supports 35W TDP CPU Extended temperature: -25°C to 70°C (-13°F~158°F) |
| Storage Temperture |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
95% @ 40°C (104°F), non-condensing |
| Vibration During Operation |
5Grms with SSD (IEC60068-2-64: random 5~500Hz) |
| Shock During Operation |
50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration) |
Certification
|
| EMC |
CE/FCC Class A |
| Safety Certifications |
CB |
OS Support
|
| Windows |
Windows 7 32-bit/64-bit (Skylake only) |
| Windows 8.1 32-bit/64-bit (Skylake only) |
| Windows Embedded Standard 7(Skylake only) |
| Windows Embedded 8 Standard (Skylake only) |
| Windows 10 64-bit |
| Windows 10 loT |
| Linux |
Linux |
