6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake) LGA1151 socket type CPU (supports TDP up to 35W)
System |
|
|---|---|
| CPU | 6th/7th gen Intel® Xeon® E3/CoreTM S (formerly Skylake/Kaby Lake) |
| LGA1151 socket type CPU (supports TDP up to 35W) | |
| Chipset | Intel® C236 Chipset |
| Memory | 2x DDR4 SO-DIMM Max. 64GB (Skylake: DDR4-2133; Kaby Lake: DDR4-2400) |
| Graphics | Xeon®: HD Graphics P530 (Skylake)/P630 (Kaby Lake) |
| CoreTM I Series: HD Graphics 530 (Skylake)/630 (Kaby Lake) | |
| Pentium®/Celeron®: HD Graphics 510 (Skylake)/610 (Kaby Lake) | |
| BIOS | AMI 128Mbit SPI BIOS |
| AI Controller (AIC) | AI for system monitoring and predictive analysis |
| Watchdog Timer | Runtime: 10 – 65535 seconds |
| Powerup: 120 – 65535 seconds | |
| TPM (optional) | SLB9665 (TPM 2.0) / SLB9635 (TPM 1.2) |
Power |
|
| DC Input | 9~36VDC |
| Surge Protection | 200V/1ms |
| Power in Protection | Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current |
| Remote/Ignition | 1x ATX power on/off switch, 5-pin terminal block including 3-pin remote control and 2-pin ignition signals (pitch 3.81 mm) |
| Power Mode | AT/ATX (BIOS setting) |
Mechanical |
|

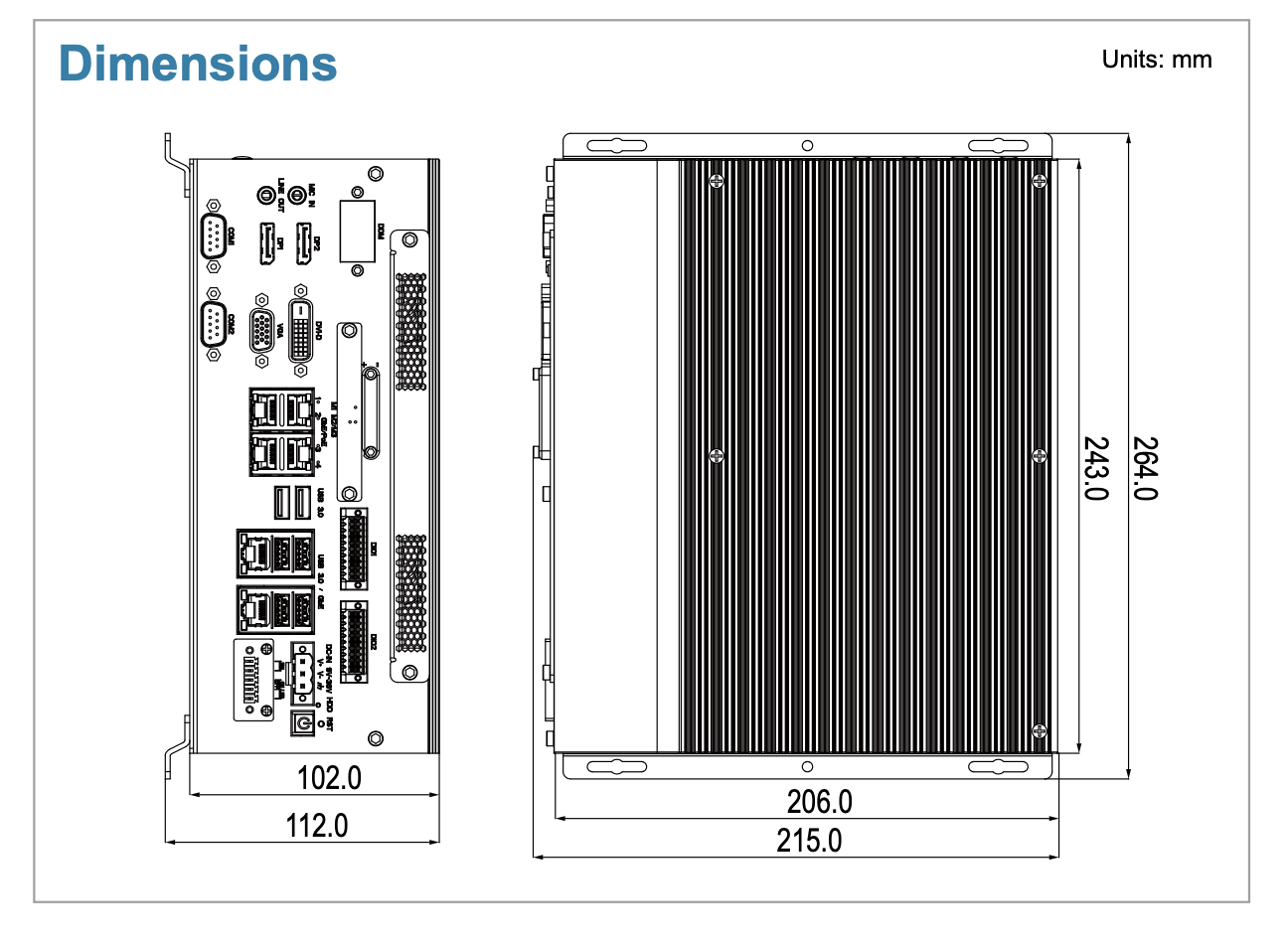

| Dimensions (WxDxH) | 102(W) x 206(D) x 243(H) mm (4.01" x 8.11" x 9.57") |
| Weight (net/gross) | 4.5kg |

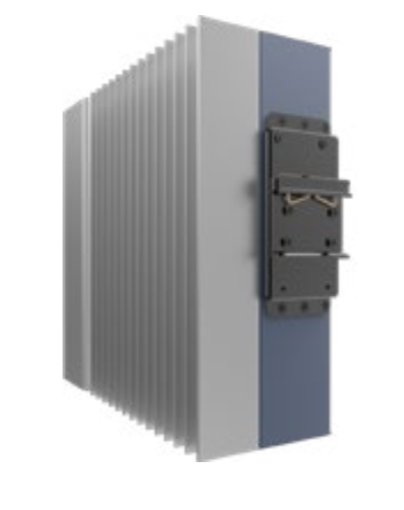

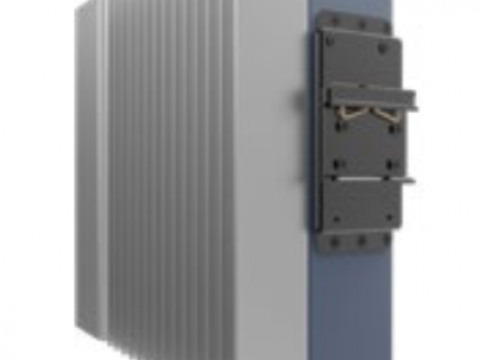

| Mounting | DIN rail mount, wall mount bracket and foot stand |
| Construction | Aluminium and metal chassis with fanless design |
| Battery | Easily replaceable RTC battery holder |
| Dynamic Display Module (DDM) | 0.96 inch LCM work with AIC to display system status |

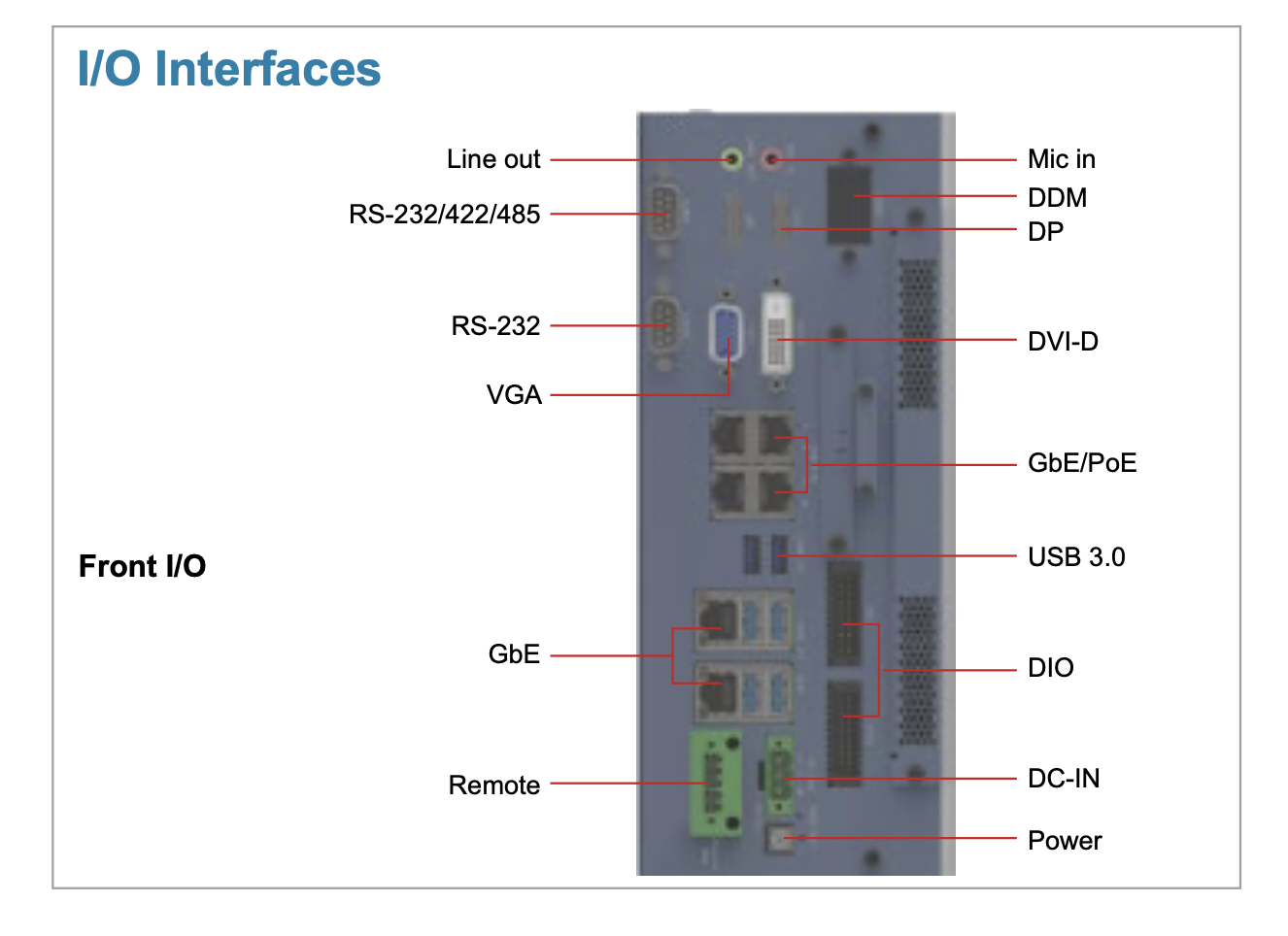

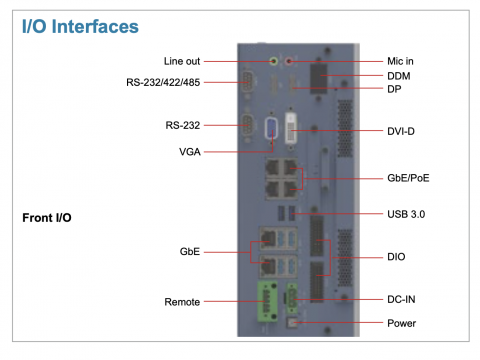

External IO |
|
| Display Ports/Resolution | 2x DP /4096x2304@60Hz |
| 1x DVI-D/1920x1200@60Hz | |
| 1x VGA/1920x1200@60Hz | |
| Triple Display Ports Resolution | 2x DP + 1x DVI-D |
| 2x DP + 1x VGA | |
| 1x DP + 1x DVI-D + 1x VGA | |
| Ethernet | Wake-on-LAN and PXE/ i219 supports iAMT 11.0 |
| 6x RJ45 GbE (1x Intel® i219+ 5x Intel® i210) (AIHD(S), AIHD(S)-i, AIHD(S)-i2) | |
| 2x RJ45 GbE (1x Intel® i219+ 1x Intel® i210)(AIHD(S), AIHD(S)-i, AIHD(S)-i2) | |
| PoE (optional) | 802.3at support up to 30W |
| 4x RJ45 GbE PoE+ (Intel® i210 )(AIHD(S), AIHD(S)-i, AIHD(S)-i2) | |
| Digital I/O | 32-bit programmable DIO (AIHD(S), AIHDP(S)) |
| 16-bit programmable DIO, isolated 8-bit DI & 8-bit DO, sink/source mode, | |
| 5~48V, 100mA (AIHD(S)-i, AIHDP(S)-i) | |
| 16-bit isolated DI & 16-bit isolated DO, sink/source mode, 5~48V, 100mA | |
| (AIHD(S)-i2, AIHDP(S)-i2) | |
| USB 3.0/2.0 | 6x USB 3.0 ports via native XHCI controller (0.9A each port) |
| COM | 1x RS-232/422/485 (auto flow control), 1x RS-232 port |
| Audio | ALC892 HD audio codec, Mic in, Line out |
| SIM | 3x SIM push-push slots |
Storage |
|
| Internal Drive Bay | 3x internal SATA port for 2.5” HDD/SSD) |
| mSATA | 3x full length mSATA (muxed with Mini-PCIe) |
| Removable Drive Bay | NA |
| RAID Mode | RAID 0/1/5 |
Expansion Slot |
|
| Mini-PCle | 3x full length Mini-PCIe (muxed with mSATA, auto detection) |
Other |
|
| USB 2.0 Dongle | Internal 1 x USB 2.0 for dongle security key |
| Antenna | 4 x antenna openings |
| LED | Power status, HDD status, IO status |
Environment |
|
| Operating Temperature | Standard: -20°C to 50°C (-4°F~122°F), supports 35W TDP CPU |
| Extended temperature: -25°C to 70°C (-13°F~158°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 95% @ 40°C (104°F), non-condensing |
| Vibration During Operation | 5Grms with SSD (IEC60068-2-64: random 5~500Hz) |
| Shock During Operation | 50Grms with SSD (IEC60068-2-27: Half Sine, 11ms duration |
Certification |
|
| EMC | CE/FCC Class A |
| Safety Certifications | CB |
OS Support |
|
| Windows | Windows 7 32-bit/64-bit (Skylake only) |
| Windows 8.1 32-bit/64-bit (Skylake only) | |
| Windows Embedded Standard 7(Skylake only) | |
| Windows Embedded 8 Standard (Skylake only) | |
| Windows 10 64-bit | |
| Windows 10 loT | |
| Linux | Linux |
I/O Comparison Chart |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model Name | DP | DVI-D | VGA | GbE (RJ45) | GbE/PoE (RJ45) | DIO | USB 3.0 | RS-232 | RS-232/422/485 | Internal 2.5" Disk Bay |
| AIHD(S) | 2 | 1 | 1 | 6 | 0 | 32-bit DIO | 6 | 1 | 1 | 3 |
| AIHD(S)-i | 16-bit DIO, isolated 8-bit DI &8-bit DO | |||||||||
| AIHD(S)-i2 | isolated 16-bit DI & 16-bit DO | |||||||||
| AIHDP(S) | 2 | 4 | 32-bit DIO | |||||||
| AIHDP(S)-i | 16-bit DIO, isolated 8-bit DI & 8-bit DO | |||||||||
| AIHDP(S)-i2 | isolated 16-bit DI & 16-bit DO |
| Model Name | Article Number (A/N) | |
|---|---|---|
| Barebone System With Fan Kit | AIHD | 04001 |
| AIHDi | 04002 | |
| AIHD-i2 | 04003 | |
| AIHDP | 04211 | |
| AIHDP-i | 04212 | |
| AIHDP-i2 | 04213 | |
| Barebone System Without Fan Kit | AIHDS | 04036 |
| AIHDS-i | 04037 | |
| AIHDS-i2 | 04038 | |
| AIHDPS | 04246 | |
| AIHDPS-i | 04247 | |
| AIHDPS-i2 | 04248 |
CPU (Optional)
| 6th Gen Skylake | |
|---|---|
| E3-1268Lv5 | Xeon® E3-1268L v5 (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP) |
| i7-6700TE | CoreTM i7-6700TE (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W TDP) |
| i5-6500TE | CoreTM i5-6500TE (4 cores/4 threads, 2.3 GHz/3.3 GHz, 6MB cache, 35 W TDP) |
| i3-6100TE | CoreTM i3-6100TE (2 cores/4 threads, 2.7 GHz, 4MB cache, 35 W TDP) |
| G4400TE | Pentium® G4400TE (2 cores/2 threads, 2.4 GHz, 3MB cache, 35 W TDP) |
| G3900TE | Celeron® G3900TE (2 cores/2 threads, 2.3 GHz, 2MB cache, 35 W TDP) |
| 7th Gen Kaby Lake | |
| i7-7700T | CoreTM i7-7700T (4 cores/8 threads, 2.9 GHz/3.8 GHz, 8MB cache, 35W TDP) |
| i5-7500T | CoreTM i5-7500T (4 cores/4 threads, 2.7 GHz/3.3 GHz, 6MB cache, 35W TDP) |
| i3-7101TE | CoreTM i3-7101TE (2 cores/4 threads, 3.4 GHz, 3MB cache, 35W TDP) |
Isolated Module
| iDIO-8I8O | 8-bit isolated DI & 8-bit isolated DO module |
AC-DC Power Adapter - AC-DC power adapter with pitch 5.0mm 3-pin terminal block plug
| ADT-24V60-T3A | 24V/60W |
| ADT-24V90-T3A | 24V/90W |
| ADT-24V120-T3A | 24V/120W |
| ADT-24V160-T3A | 24V/160W |
| ADT-24V220-T3A | 24V/220W |
| ADT-24V280-T3A | 24V/280W |
AC Power Cord - H05VV-F 3G 0.75mm2, 1.8m, 250V, 10A
| PCBL-B12 | YP12-YC12: category B type plug, TW/JP/US/CA/TH/PH/Central America |
| PCBL-D03 | YP03-YC12: category D type plug, CN |
| PCBL-D35 | YP35-YC12: category D type plug, AU/NZ |
| PCBL-G22 | YP22-YC12: category G type plug, DE |
| PCBL-I61 | YP61-YC12: category I type plug, UK/HK/MO/SG/MY |
SO-DIMM Memory - DDR4-2133/2400 2GB/4GB/8GB/16GB/32GB
| SSD | mSATA SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB |
| 2.5 inch SSD: 16GB/32GB/64GB/128GB/256GB/512GB/1TB | |
| 2.5 inch HDD: 500GB/1TB/1.5TB/2TB |
Wireless Module - Mini-PCIe wireless module for 3G/4G LTE/Wi-Fi/BT/NB-IoT/GPS/BDS
Cable & Connector
| CBL-S01 | SATA (Data + Power) cable x1 |
| TBP5-S03 | 3-Pin, pitch5.0mm Female Terminal Block Plug for DC input x1 |
| TBP3-S05 | 5-Pin, pitch3.81mm Female Terminal Block Plug for remote connector x1 |
| TBP3-D20 | 2x10-Pin, pitch2.54mm Female Terminal Block Plug for DIO connector x1 |
Mounting Kit
| WBK-AIH | Wall mount bracket x2 with M3x6 screws x6 |
| UTA-159 | Phoenix Contact DIN Rail Clip with M3x6 screws x6 |
Item No.
| 1 | Eagle Eyes Embedded Box PC AIHD x1 |
