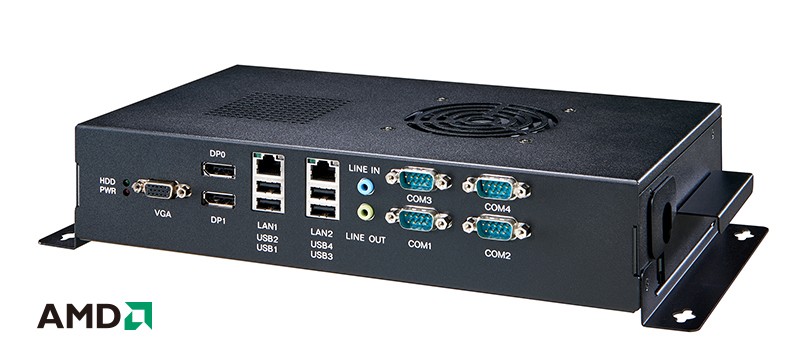

Dual Display Gaming Logic Box


Cost-effective All-in-One Gaming Platform

Part number: EGL6082


  • Cost-effective All-in-One Gaming Platform
  • 2 x Independent displays
  • Scalable computing power
  • PCI Express® gaming peripheral controller and NVM
  • SmartBay® Supports CFAST, CF, 2.5"/ 1.8" SSD, SATA DOM and USB devices with key-lock option
  • Software supports Embedded Windows and Linux


  • AMD Embedded G-Series SoC, up to 2.0GHz
  • Integrated AMD Radeon™ HD 8000 graphics
  • 2 x DDR3 SO-DIMM, up to 16Gb
  • 2 x DP, 1 x VGA
  • 1 x SATA with pin 7 VCC+ SmartBay®

The EGL-6080 is designed for the most popular dual screen gaming market which utilises the AMD G Series SOC from Dual Core 1.8GHz up to Quad Core 2.0 GHz. The capacity of on board memory can be expanded to a maximum 16GB. It supports a full feature set of Gaming I/O in the market with a design of exchangeable I/O interface from popular I/O pin out in the market to JAMMA 72 Pin Golden Finger, and customise I/O also welcome under request.

With on Board AMD GPU HD8000 series it produces attractive graphic performance with Dual full-HD display channels. EGL-6080 is designed for GLI/BMM ready with on board NVR from 3MB up to 16MB. The EGL-6080 comes with a Smart Bay® which supports CFAST, CF, 2.5”/1.8” SSD, SATA DOM and USB devices with key-lock option. External 4 RS-232 and 4 USB ports are ready for connecting to all gaming peripherals and devices. Dual Gigabyte LAN ports also comes along for high-speed Ethernet connection.
