LCD

LCD Size / Type​

• 21.5" diagonal TFT Active Matrix Panel


Max. Resolution​

• 1920 x1080


Display Model​

• VGA 720 X 400 (70 Hz)
• VGA 640 X 480 (60/66/70/72/75 Hz)

• SVGA 800 X 600 (60/70/72/75 Hz)

• XGA 1024 X 768 (60/70/75 Hz)

• SXGA 1280 X 1024 (60/70/75 Hz)

• WXGA+1440 X 900 (60/75 Hz)

• WSXGA 1680 X 1050 (60Hz)

• 1920 X 1080 (60Hz)

Max. Color​

• 16.7M (6bits + A-FRC)


Contrast Ratio​​

• 1000:1


Brightness

• (Without Touch) 250 nits (typical)

• (Projected Capacitive) 225 nits (typical)​


Response Time​

• 14ms (typical)


Viewing Angle​​

• 8 ms (typical)


Viewing Angle​

• Horizontal 178˚ (typical), Vertical 178˚ (typical)


Pixel Pitch​

• 0.24795 (H) X 0.24795 (V) mm


Touch Screen

Active Area

• 476.064 (H) X 267.786 (V) mm

Touch Technology​

• 10 Points Projected Capacitive


Touch Interface​

• USB (Type-B)


System​

Video Signal Input​

• D-sub 15 pin Female (Analog) x 1 for VGA,DVI-D x 1


Video Input Frequency​

• 31.47kHz ~ 82.3kHz / 56Hz ~ 75Hz (Horizontal / Vertical)

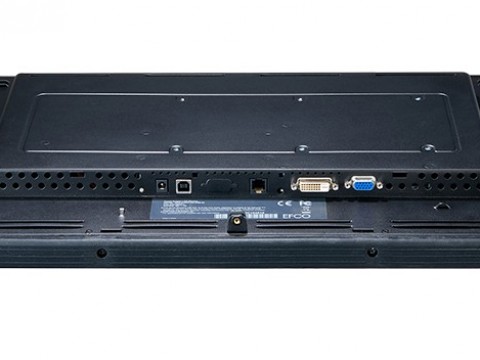

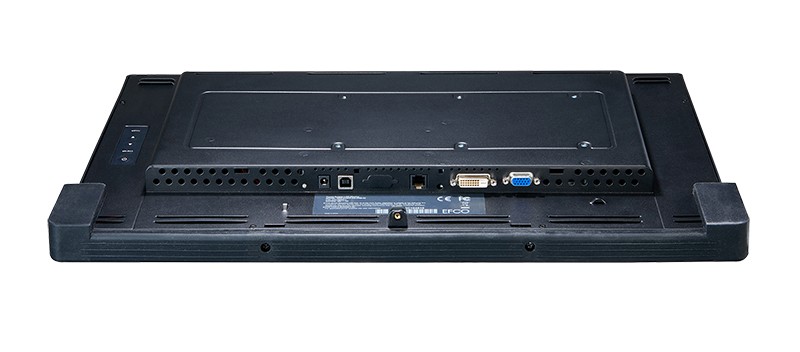

I/O​

• VGA x 1

• DVI-D x 1

• RJ-11 x 1

• USB Type-B x 1

• DC-IN x 1


OSD Keys

• Control Key Power On/Off, Select, Down, Up, Menu


OSD Option​​

• Contrast, Brightness

• Auto Adjust, Left/ Right, Down / Up

• Horizontal Size, Fine

• OSD Left / Right, OSD Down / Up

• OSD Timeout, Factory Reset, Language, RGB


OSD Remote Control​

• Supported by option RJ-11 control cable


OS support​

• Windows® 7

• Windows® 8.1

• Windows® 10 WES7, WES8,

• Windows® 10 IOT

• Linux


Plug & Play​​

• DDC 2B Compatible


Power​​​ Consumption​

• Operating: 27W (typical)

• Sleep: 2W

• Off: 1W


Power Supply​​

• DC 12V, 4.16A


Mechanical

Case Colour​

• Black


Dimensions​

• 517.4mm (W) X 313.3mm (H) X 46.0mm (D)


​Net Weight (Approx.)​

• 4.4 kg (w/o stand)​​


Shipping Weight (Approx.)​

• 6.8 kg (w/o stand)


Mounting Option​

• 100 mm X 100 mm VESA Mount


Environment

Operating Temperature

• Operating: 0˚C ~ +40˚C

• Storage: -20˚C ~ +60˚C


Humidity​

• Operating: 20% ~ 80% (Non-condensing)
• Storage: 10% ~ 90% (Non-condensing)


Anti-Vibration

• 1 g rms/ 5~ 500Hz/ operation


Anti-Shock

• 30G-peak acceleration for 2 milliseconds duration in each of the three axes


Safety

• USA UL/cUL

• Germany TUV (Bauart Mark)

• Europe CE Mark

• Low-Voltage Directive (2014/35/EU)


MTBF

• 50,000 HRs

• Primary test/preset mode under ambient temperature of 25°C


EMC

• USA FCC Class B

• Europe CE Mark

• Electromagnetic Compatibility (2014/30/EU)

• EMC Emission EN 55032 Class B

• Harmonics EN 61000-3-2

• Fluctuation/Flicks EN 61000-3-3

• EMC Immunity EN 55024 / EN 61000-6-1
  including as below:
• EN 61000-4-2 ESD

• EN 61000-4-3 RS​

• EN 61000-4-4 EFT

• EN 61000-4-5 Surge

• EN 61000-4-6 CS

• EN 61000-4-8 Power Frequency Magnetic Field

• EN 61000-4-11 Voltage Dips / Voltage Interruptions
